ASP880 Manual

ASP880 is an eight-channel microphone preamplifier and ADC in a 1RU enclosure. It combines eight Audient Console microphone preamps, line inputs, two discrete JFET instrument inputs, variable input impedance, sweepable high-pass filters, analogue insert access and simultaneous AES/S/PDIF and ADAT digital outputs.

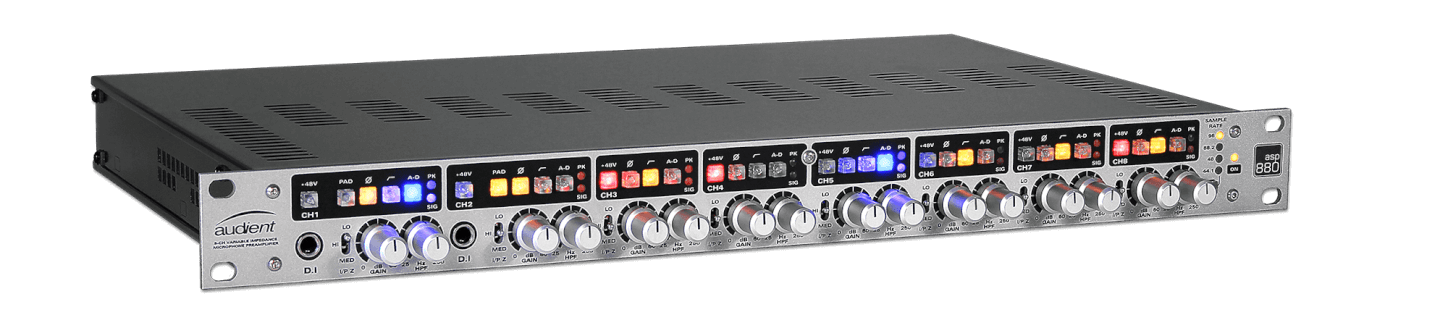

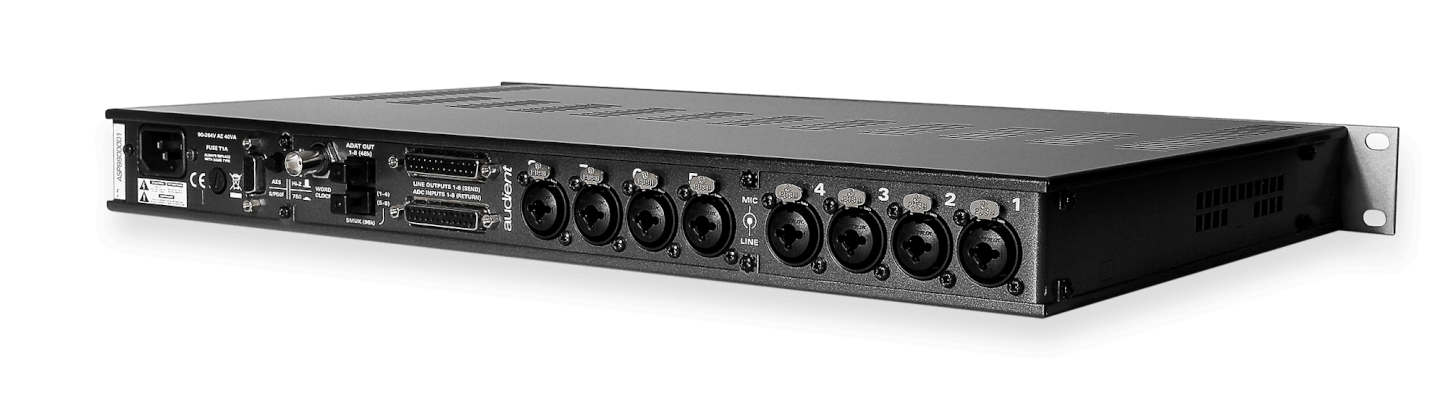

ASP880 product front view ASP880 product rear view

What’s in the box​

  • ASP880
  • Mains IEC cable, stored in the rear protection tube
  • Quick Start Guide

Key features​

  • 8 × Class-A microphone preamplifiers
  • 2 × discrete JFET instrument inputs on channels 1 and 2
  • 48 V phantom power on every channel
  • 0–60 dB microphone gain, with −10 dB pads on channels 1 and 2
  • Polarity reverse on every channel
  • Three-position variable input impedance: 220 Ω, 1.2 kΩ or 2.8 kΩ
  • Sweepable 12 dB/octave high-pass filter from 25–250 Hz on every channel
  • Eight analogue line outputs
  • Eight direct ADC inputs that can form insert returns
  • Burr-Brown ADC with 115 dB A-weighted dynamic range
  • Simultaneous AES/S/PDIF and ADAT SMUX output up to 96 kHz
  • Fanless internal power supply for 90–264 V AC operation without reconfiguration
