NERO Manual

Welcome to your Audient NERO Monitor Controller.

NERO provides a comprehensive set of analogue and digital inputs, three stereo speaker outputs, an assignable subwoofer output, four headphone outputs, talkback and configurable Smart Touchpoints.

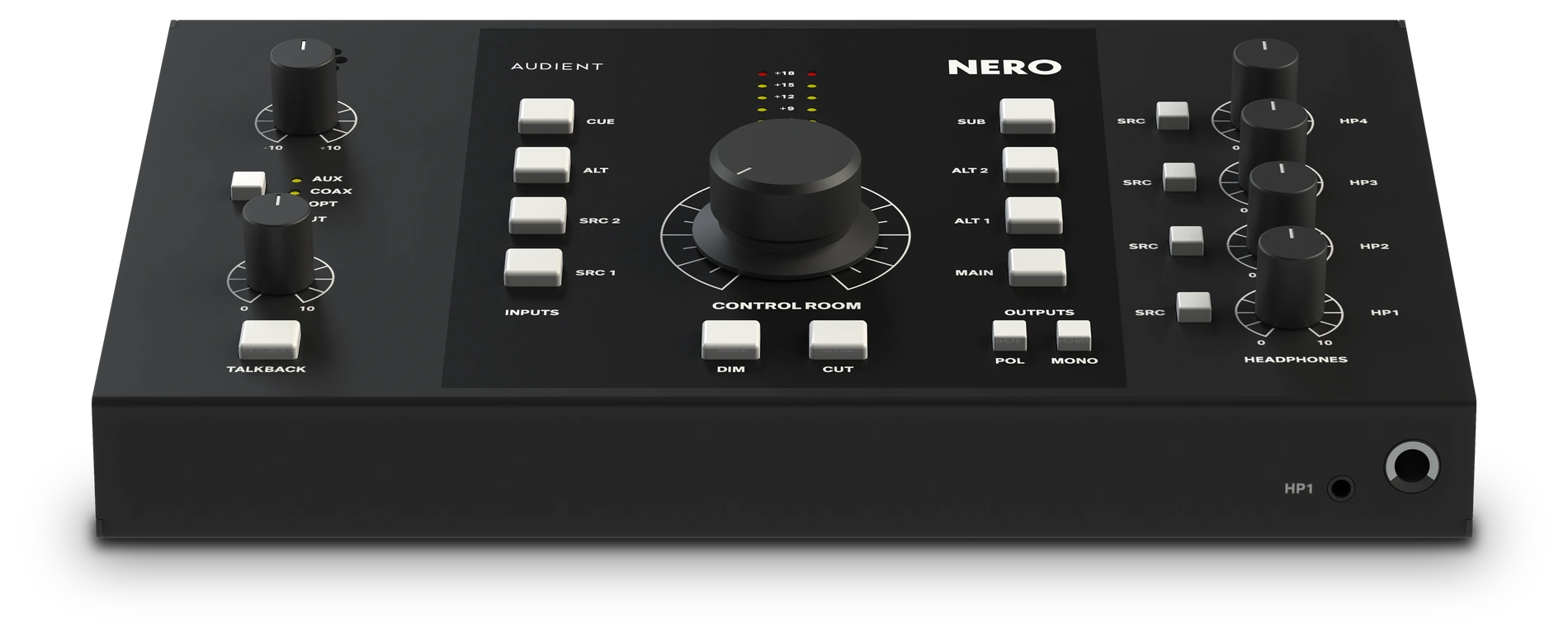

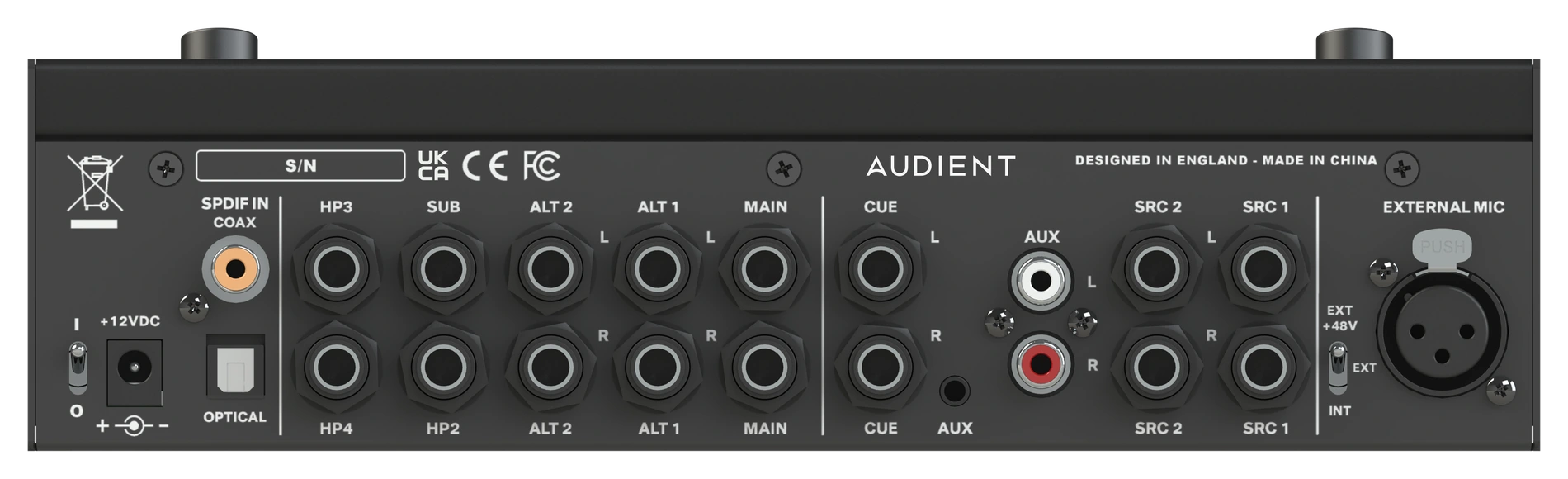

NERO front panelNERO rear panel

Inside the box​

  • NERO
  • 12 V switch-mode power supply with regional adaptors
  • Quick Start Guide

The 12 V DC power supply comes with interchangeable UK, EU, US and Australian socket adaptors and works across a broad range of mains voltages, making NERO globally portable.

Features​

  • 4 stereo analogue sources:
    • 2 line-level inputs
    • 1 dedicated Cue Mix input
    • 1 Aux input using RCA or mini-jack
  • Optical and coaxial S/PDIF inputs
  • 3 stereo speaker outputs
  • 1 assignable Sub output
  • 4 headphone outputs with flexible routing
  • Smart Touchpoints for user customisation
  • Talkback input
  • Internal microphone
  • External talkback input
  • Dim, Cut, Mono and Polarity monitor controls

Controls and connections​

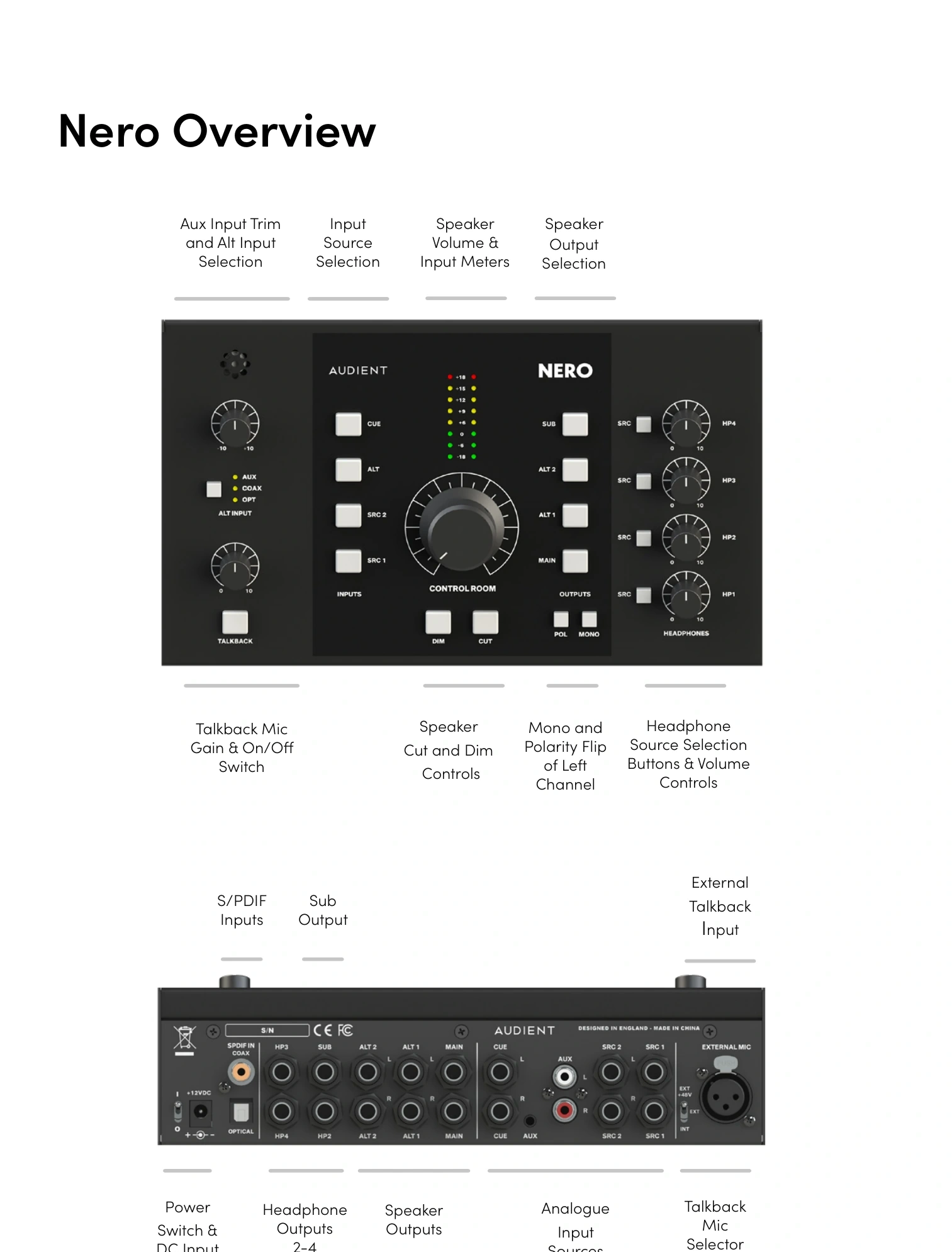

Labelled NERO front-panel and rear-panel overview
Labelled NERO front-panel controls and rear-panel connections.

Next steps​

Continue to Getting Started.
