Signal Flow

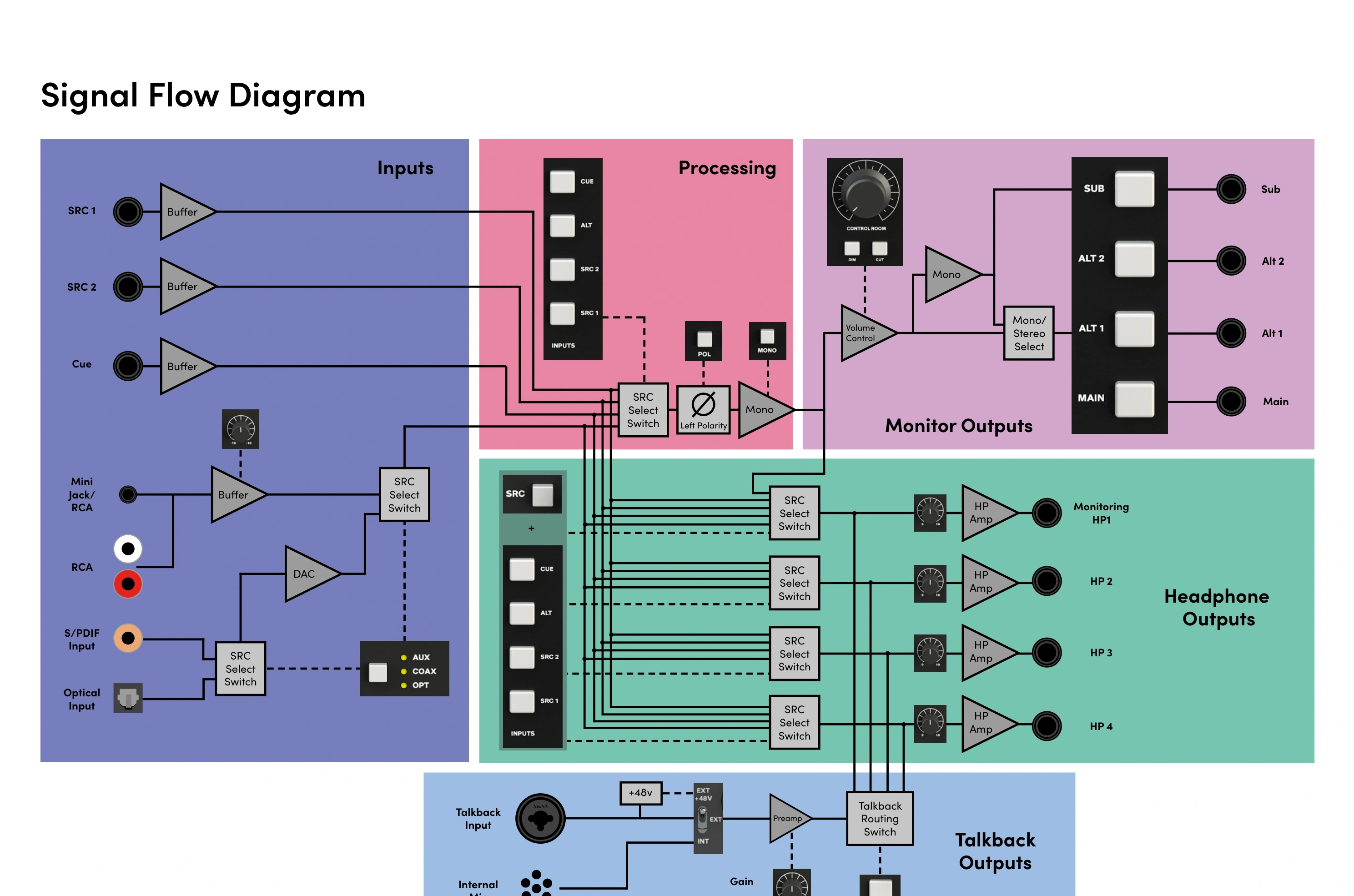

The signal-flow diagram below shows the complete relationship between the input sources, processing, monitor outputs, headphone outputs and Talkback path.
The diagram includes:
- SRC 1, SRC 2 and Cue inputs
- Mini-jack and RCA Aux inputs
- Coaxial and optical S/PDIF inputs
- Input and source-select switching
- Left-channel Polarity
- Mono and stereo selection
- Main, Alt 1, Alt 2 and Sub monitor outputs
- Headphone outputs 1 to 4
- Internal and external Talkback sources
- Talkback gain and routing
