ASP800 Manual

ASP800 is an eight-channel microphone preamplifier and ADC designed to expand an audio interface or recorder. It combines eight Audient Console microphone preamps, eight line inputs, two discrete JFET instrument inputs, eight balanced analogue outputs and ADAT output in a 1RU unit.

Channels 1 and 2 are RETRO channels. Each adds two variable colour stages: the HMX MOSFET harmonic saturator and the IRON transformer drive stage.

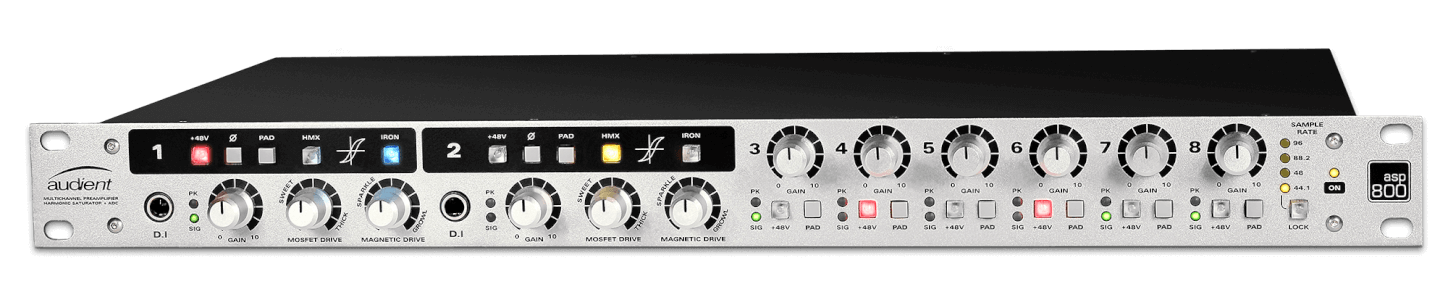

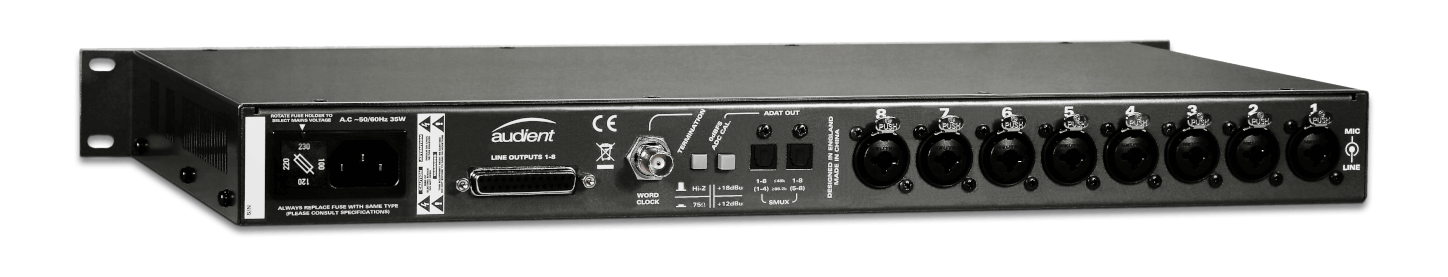

ASP800 product front view ASP800 product rear view

What’s in the box​

  • ASP800
  • Mains IEC cable
  • Quick Start Guide

Key features​

  • 8 × Class-A microphone preamplifiers
  • −15 dB pad on every channel
  • Combi XLR microphone inputs with 1/4-inch TRS line inputs
  • 2 × discrete JFET instrument inputs
  • 2 × RETRO channels with HMX and IRON saturation controls
  • Polarity reverse on channels 1 and 2
  • 8 × balanced analogue line outputs on a Tascam-format DB25 connector
  • 48 V phantom power on every channel
  • 0–70 dB microphone gain range
  • Burr-Brown PCM4204 ADCs with ADAT SMUX output for operation up to 96 kHz
  • Fanless linear power supply with selectable 100, 120, 220 or 230 V AC operation
