Block Diagram

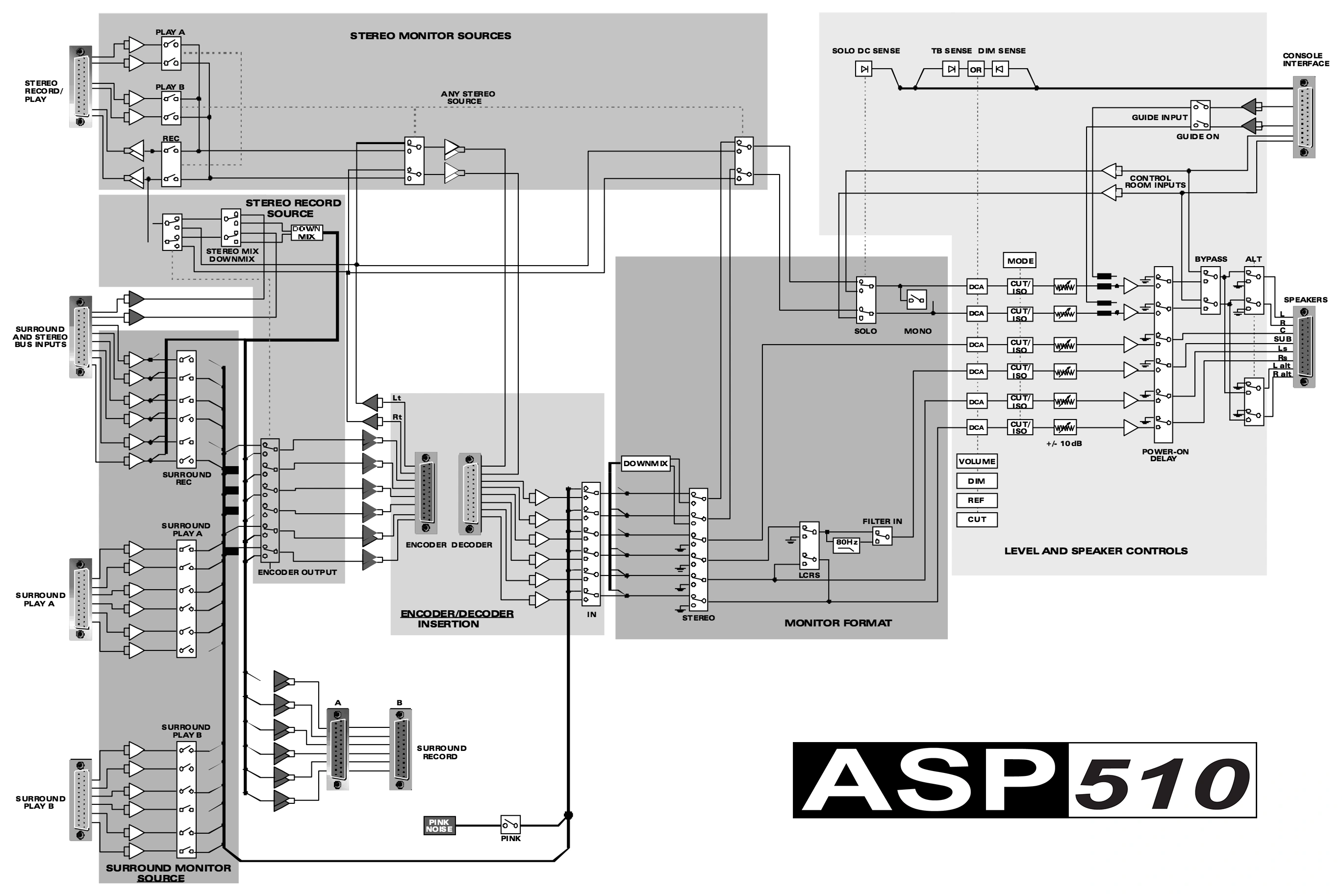

The diagram below shows the ASP510 signal flow across the stereo monitor sources, surround monitor sources, encoder and decoder path, monitor-format matrix, console interface, speaker controls and record outputs.
