ASP510 Manual

ASP510 is a surround sound monitor controller designed for console and DAW based systems.

It combines a remote desktop control surface with a 1U rack processor so the audio processing can remain in the rack while the monitoring controls stay within easy reach.

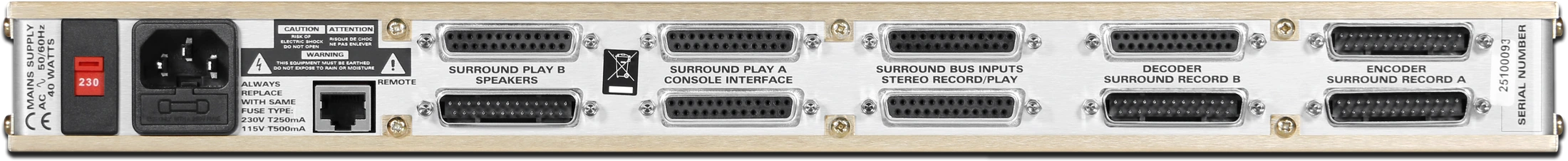

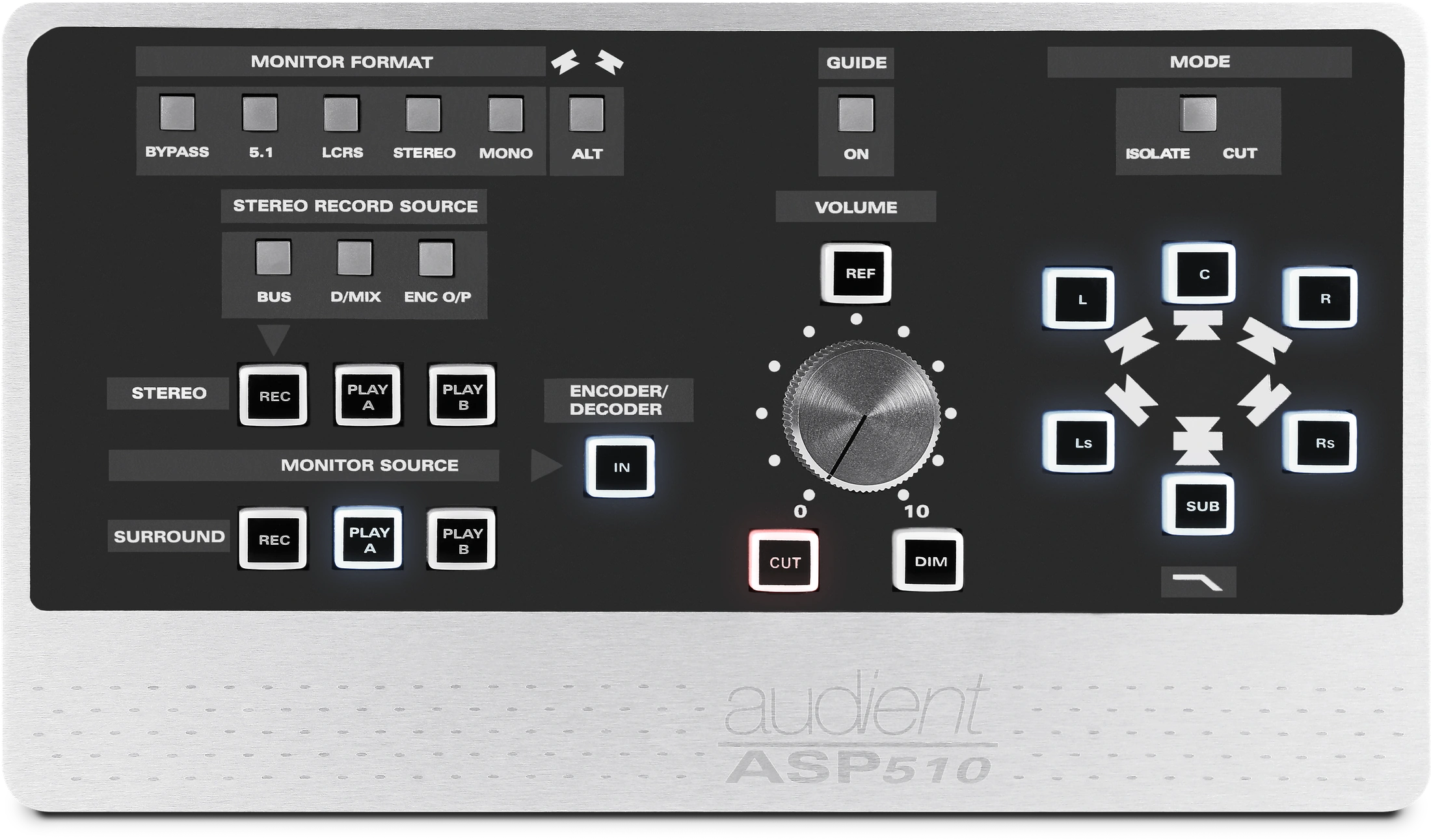

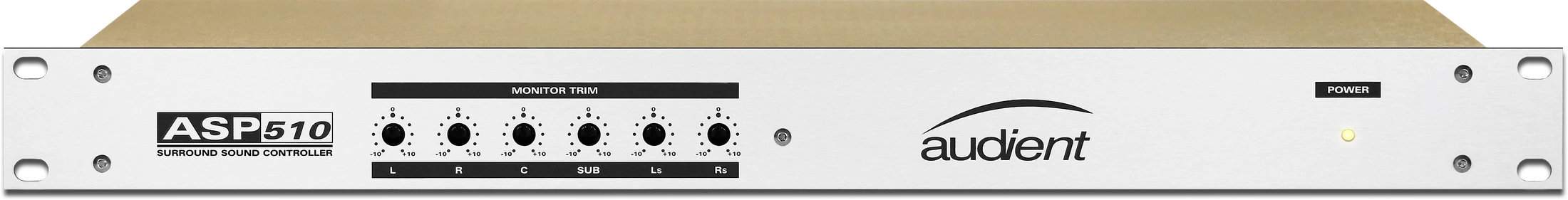

ASP510 remote control surfaceASP510 surround processor rack unit front panelASP510 surround processor rack unit rear panel

Inside the box​

The ASP510 system is supplied with:

  • ASP510 Surround Processor rack unit
  • ASP510 Remote Control
  • Mains power cord
  • CAT5 interconnecting cable

Key features​

  • Three surround monitor sources, up to 5.1
  • Three stereo monitor sources
  • Dedicated encoder and decoder insert connections
  • Six speaker outputs with individual level trims
  • Alternate Left and Right speaker switching
  • Individual speaker Cut or Isolate control
  • User definable Reference and Dim levels
  • Built-in pink noise generator
  • Guide track input
  • Console Solo, Dim, Talkback and Bypass logic interface
  • Stereo record source selection
  • 5.1, 5.1 Film, LCRS, Stereo, Mono and Bypass monitoring workflows
  • Remote control connected to the rack processor by CAT5

System architecture​

All audio processing takes place in the rack processor. The desktop remote controls the processor over an RS485 link.

This arrangement keeps the audio connections in the rack while allowing monitor format, source, speaker and level control from the listening position.

Next steps​

Continue to Installation and Audio Connections.
