iD14 MKII Manual

iD14 MKII is a 10-in, 6-out USB-C audio interface with two Audient Console Mic Preamps, a JFET instrument input, optical digital expansion, four line outputs, dual headphone sockets, and flexible hardware and software monitoring.

iD14 MKII top control surfaceiD14 MKII front paneliD14 MKII rear panel

What’s in the box​

  • iD14 MKII
  • USB-C to USB-C cable
  • Quick Start Guide

Features​

  • 2 × Audient Console Mic Preamps
  • AD/DA converters
  • 1 × JFET instrument input
  • 4 × line outputs
  • Dual headphone sockets
  • Optical digital input for ADAT or optical S/PDIF
  • Ultra-low-latency software mixer
  • Advanced monitor control
  • ScrollControl
  • Audio loopback
  • True phantom power over USB
  • USB 3.0 bus-powered operation
  • Up to 24-bit, 96 kHz operation
  • All-metal construction

Hardware layout​

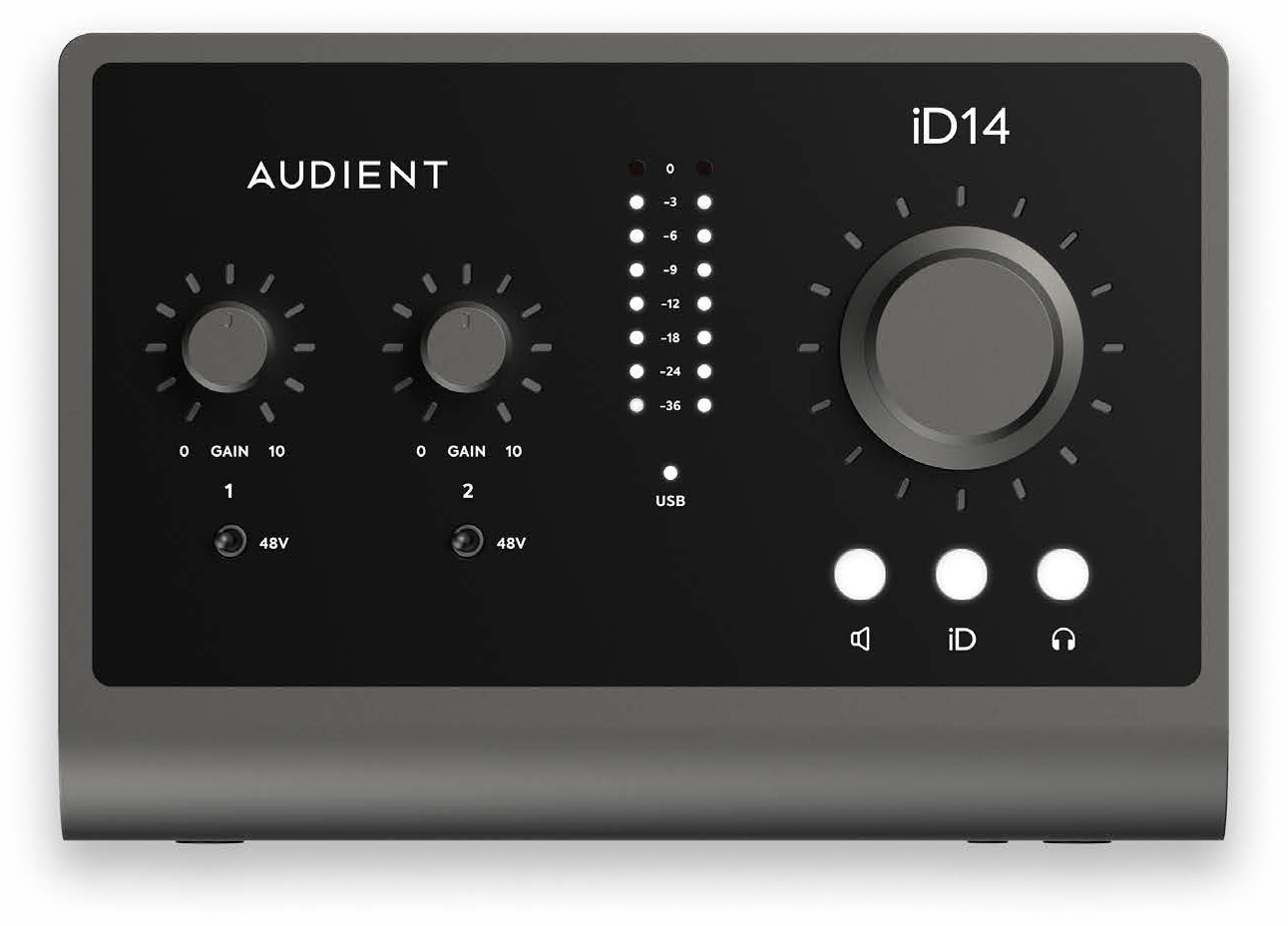

Top panel​

  • Channel 1 mic/line gain
  • Channel 2 mic/line gain
  • +48V phantom-power controls
  • Main meters
  • Volume encoder
  • Speaker-output select
  • iD button
  • Headphone-output select

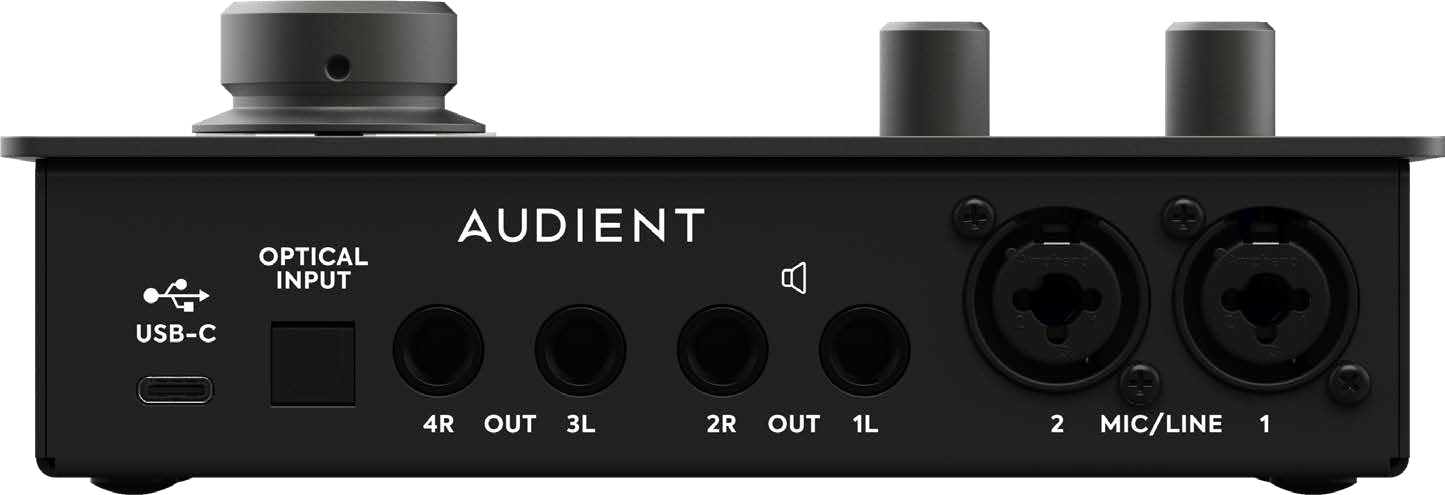

Rear panel​

  • USB-C connection
  • Mic/line inputs 1 and 2
  • 4 × balanced line outputs
  • Optical digital input

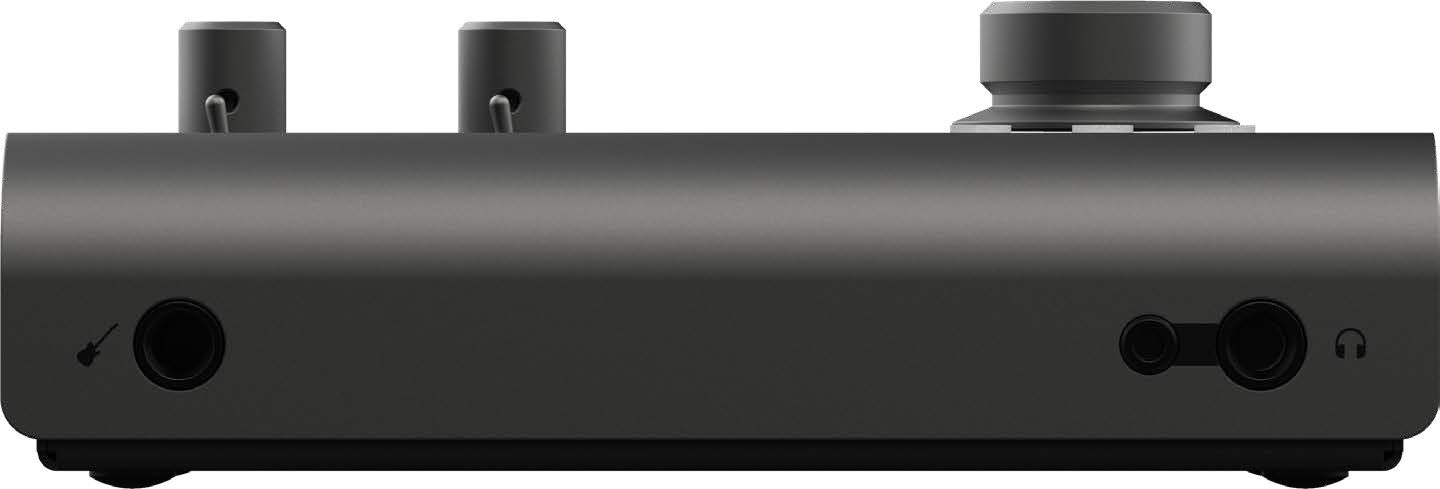

Front panel​

  • Instrument input
  • 3.5 mm and 6.35 mm headphone sockets
