| Format | Supported sample rates |
|---|
| ADAT, 8 channels | 44.1 or 48 kHz |
| ADAT SMUX, 4 channels | 88.2 or 96 kHz |
| Optical S/PDIF, 2 channels | 44.1–96 kHz |
| Specification | Value |
|---|
| Gain range | 58 dB |
| Lineup | 12 dBu = 0 dBFS |
| Maximum microphone input level | 12 dBu |
| Maximum line input level | 21 dBu |
| Microphone input impedance | 2.8 kΩ |
| Line input impedance | > 8 kΩ |
| THD+N at 0 dBu | 0.00170% |
| THD+N at 0 dBu, maximum gain | < 0.04% |
| SNR | 101 dB A-weighted |
| EIN | −129 dBu A-weighted |
| CMRR at 1 kHz | > 75 dB |
| Crosstalk | > −100 dB |
| Frequency response at minimum gain | ±0.5 dB, 10 Hz–40 kHz |
| Phantom power | 48 V ±4 V, 10 mA/channel |
| XLR | Pin 2 hot, Pin 3 cold, Pin 1 shield |
| ¼-inch TRS | Tip hot, Ring cold, Sleeve shield |
| Specification | Value |
|---|
| Gain range | 40 dB |
| Lineup | 12 dBu = 0 dBFS |
| Maximum lineup | +10 dBu |
| THD+N at 0 dBu | 0.1% |
| SNR | 100 dB A-weighted |
| Frequency response at minimum gain | ±0.5 dB, 10 Hz–20 kHz |
| ¼-inch TS | Tip hot, Sleeve shield |
Analogue-to-digital converter
| Specification | Value |
|---|
| THD+N at −1 dBFS | 0.001% |
| Dynamic range | 120 dB A-weighted |
| CMRR | > 80 dB |
| Frequency response | ±0.5 dB, 10 Hz–40 kHz |
Line outputs
| Specification | Value |
|---|
| Lineup | 12 dBu = 0 dBFS |
| THD+N at −1 dBFS | 0.0006% |
| Dynamic range | 125.5 dB A-weighted |
| Crosstalk | > 120 dB |
| Frequency response | ±0.1 dB, 10 Hz–40 kHz |
| ¼-inch TRS | Tip hot, Ring cold, Sleeve shield |
Headphone output
Measurements are specified with a 100 kΩ load unless otherwise stated.
| Specification | Value |
|---|
| Lineup | 18.5 dBu = 0 dBFS |
| THD+N at −1 dBFS | 0.0009% |
| Dynamic range | 125.5 dB A-weighted |
| Crosstalk | > 116 dB |
| Frequency response | ±0.25 dB, 10 Hz–40 kHz |
| Maximum level at 30 Ω | 2.59 V peak / 1.827 V RMS / 223 mW |
| Maximum level at 62 Ω | 4.18 V peak / 2.95 V RMS / 280 mW |
| Maximum level at 600 Ω | 7.72 V peak / 5.46 V RMS / 100 mW |
| ¼-inch TRS | Tip left, Ring right, Sleeve shield |
I/O capacity
| Specification | Value |
|---|
| Analogue input channels | 2 |
| Optical input channels | Up to 8 |
| Maximum hardware input count | 10 at 44.1/48 kHz |
| Line-output channels | 4 |
| Headphone-output channels | 2 |
| Maximum hardware output count | 6 |
| Loopback | Additional virtual stereo host input |
The loopback input is shown to host software as Input 11+12 or Loopback 1+2 and is not included in the advertised 10-input hardware count.
USB power
| Specification | Value |
|---|
| Minimum bus-power requirement | 0.9 A at 5 V from USB 3.0 or better |
| Maximum available bus power | 1.5 A at 5 V via USB-C |
USB-C provides additional available power for greater headphone-output headroom.
DSP mixer latency
Round trip, input to output.
| Sample rate | Latency |
|---|
| 44.1 kHz | 0.65 ms |
| 48 kHz | 0.60 ms |
| 88.2 kHz | 0.33 ms |
| 96 kHz | 0.31 ms |

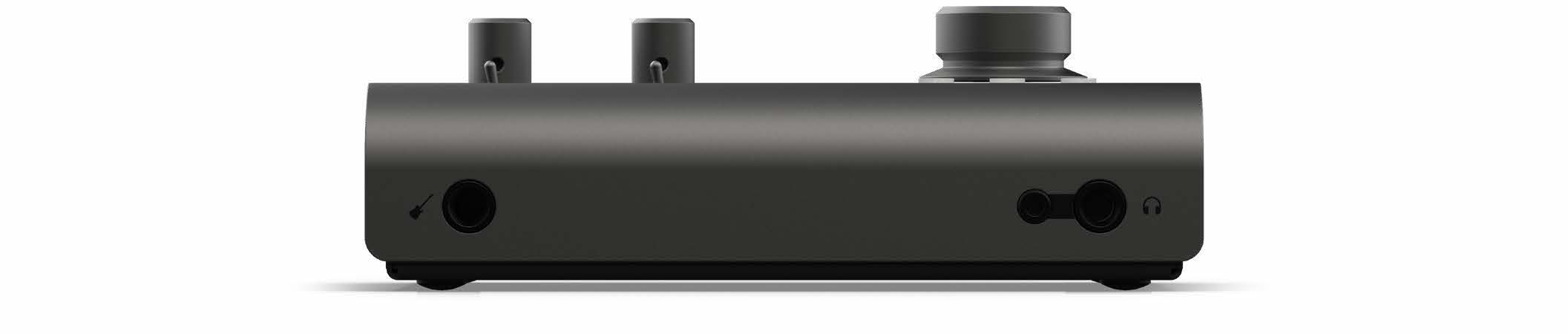

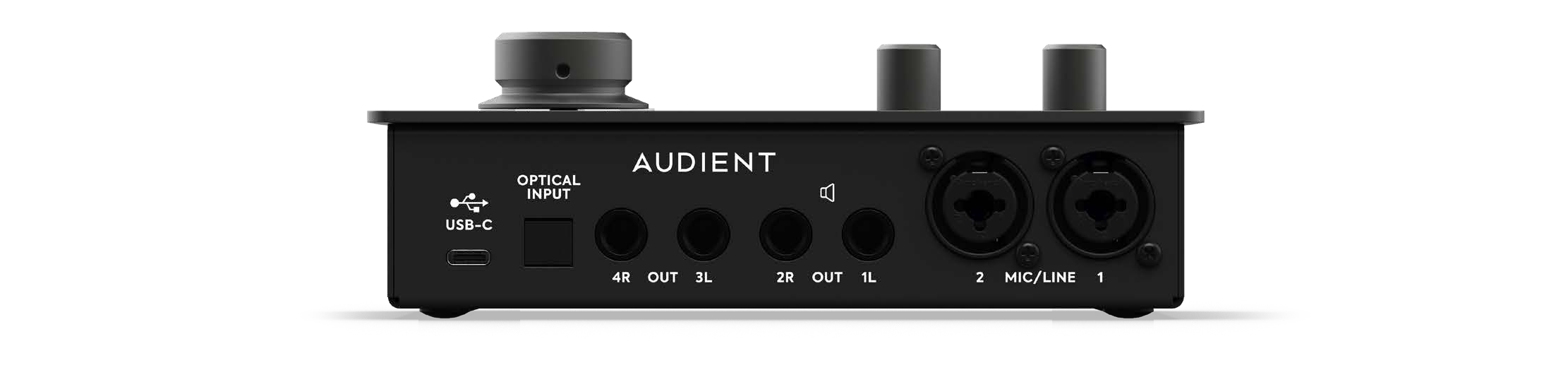

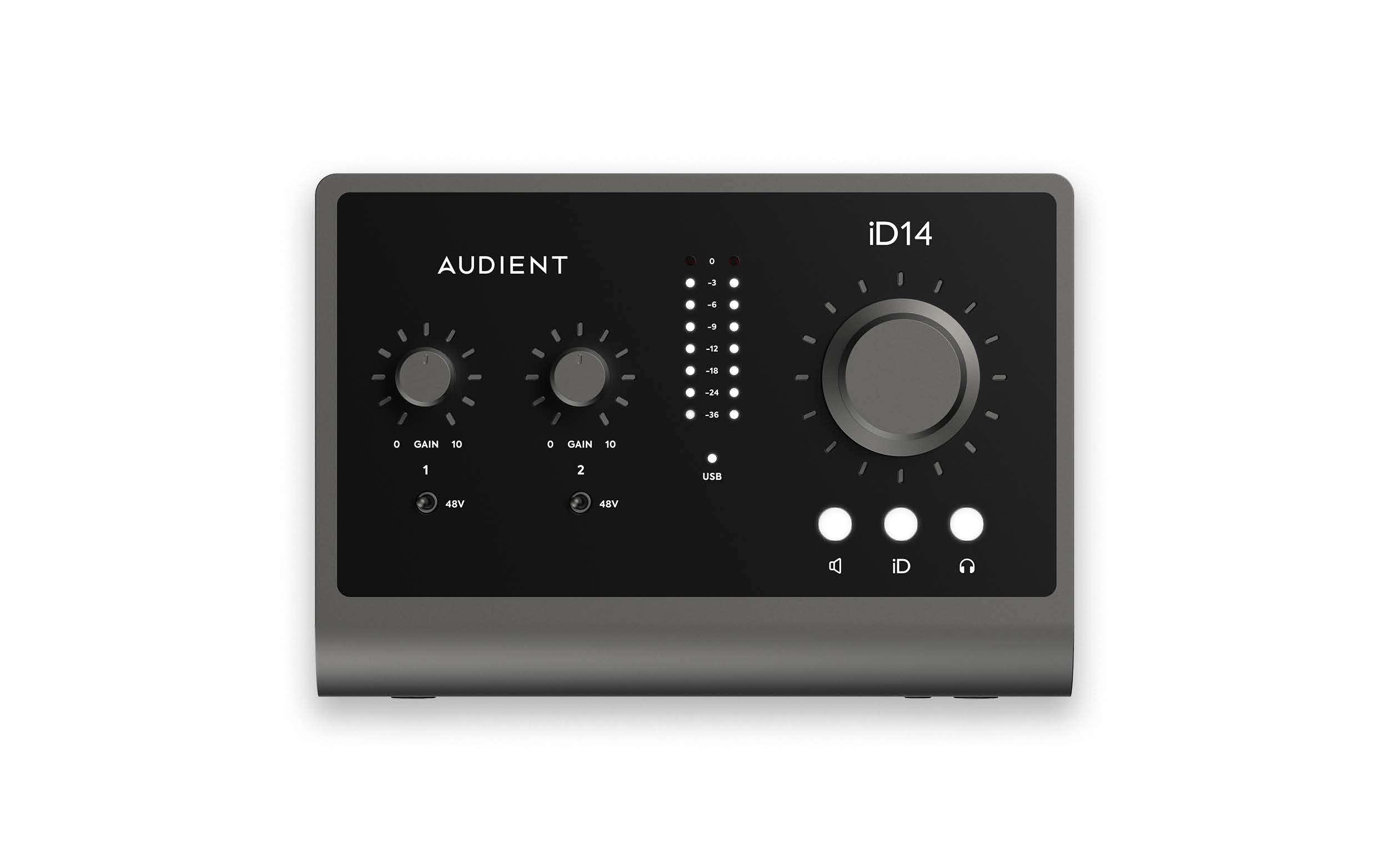

Dimensions
| Measurement | Value |
|---|
| Width | 173 mm |
| Depth | 120 mm |
| Chassis height | 40 mm |
| Overall height, main-encoder side | 62.1 mm |
| Overall height, gain-control side | 61.1 mm |
