iD48 Manual

iD48 is a 24-input, 32-output USB-C audio interface with eight Audient Console mic preamps, two independent headphone outputs, dual optical I/O, eight switchable balanced insert/line-output paths, word-clock I/O, low-latency DSP monitoring and audio loopback. A maximum of 24 unique output channels can be used simultaneously over USB.

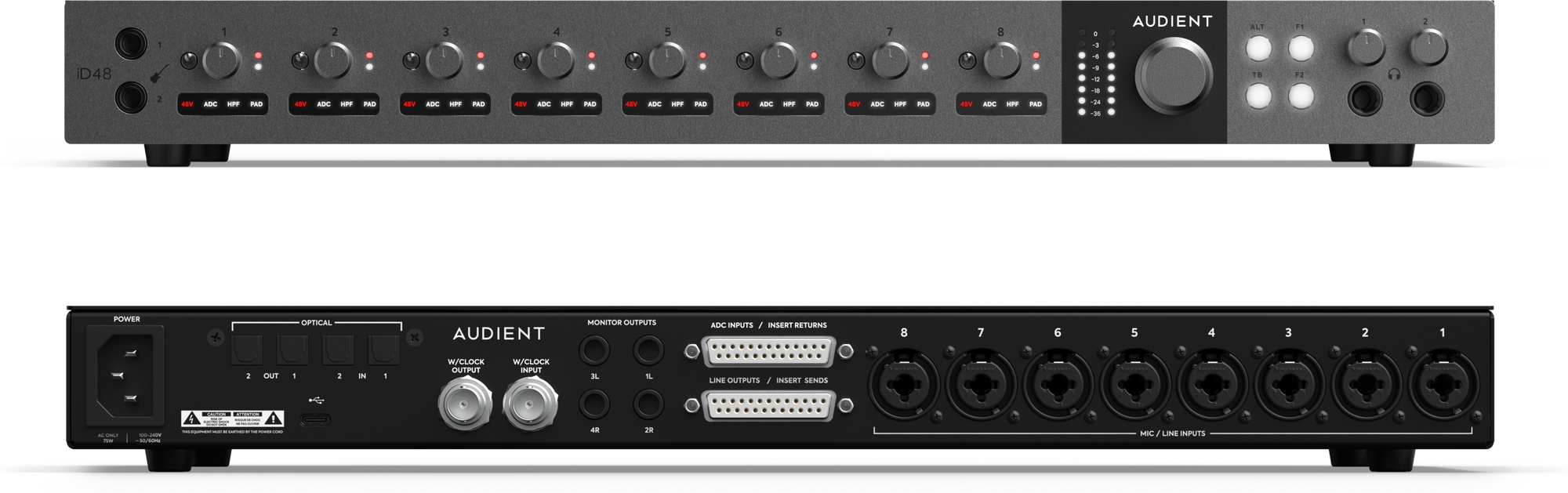

iD48 front and rear panels

What’s in the box​

  • iD48
  • USB-C to USB-C cable
  • Quick Start Guide
  • Rack ears
  • Mains power cable

Key features​

  • 8 × Class-A Audient Console mic preamps
  • AD/DA conversion
  • 2 × discrete JFET instrument inputs
  • Main and Alt speaker outputs
  • 2 × independent headphone outputs
  • 2 × ADAT optical inputs and 2 × ADAT optical outputs, switchable to S/PDIF
  • 8 × switchable balanced insert/line-output paths
  • Ultra-low-latency DSP mixer
  • Audio loopback
  • ScrollControl
  • 2 × user-assignable function keys
  • Dedicated Alt Speakers and Talkback buttons
  • +48 V, -10 dB pad, +10 dB digital boost, polarity invert and 100 Hz HPF controls
  • Word-clock input and output
  • Standalone mode
  • Front-panel power on/off control
  • USB 2.0 High Speed connection over USB-C
  • Up to 24-bit, 96 kHz operation
  • Detachable rack ears
  • All-metal construction
  • Free software and plug-ins/resources available through Audient ARC

Hardware overview​

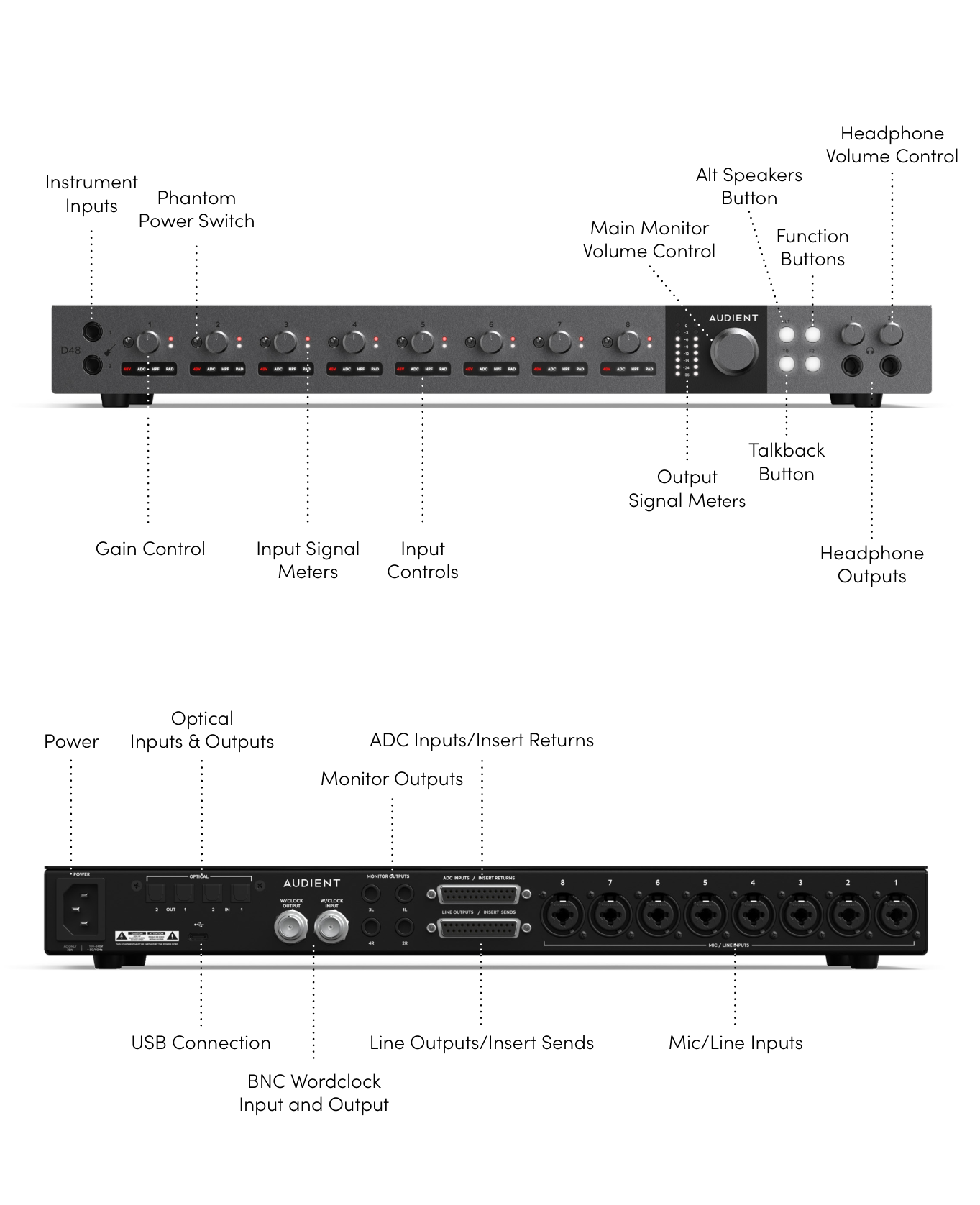

Labelled iD48 front and rear panel controls and connections

The front panel provides the instrument inputs, eight gain controls and input-status indicators, hardware output meters, Main Monitor encoder, Alt and Talkback buttons, two function buttons, two independent headphone outputs and their volume controls.

The rear panel carries the mains inlet, USB-C connection, two optical input/output pairs, BNC word-clock input/output, two stereo monitor-output pairs, the ADC Input/Insert Return and Line Output/Insert Send DB25 connectors, and eight mic/line combi inputs.
