तकनीकी स्पेसिफिकेशन और आयाम
माइक्रोफ़ोन preamplifier
| स्पेसिफिकेशन | मान |
|---|
| Mic gain | 0 to +68 dB (with +10 dB digital Gain Boost) |
| Line gain | −10 to +58 dB (with +10 dB digital Gain Boost) |
| Phantom power | 48 V ±4 V @ 10 mA/channel |
| Mic EIN | −127 dBu |
| CMRR | > 80 dB @ 1 kHz |
| Maximum input level | +18 dBu |
| Input impedance (Mic) | 3 kΩ balanced |
| Input impedance (Line) | 10 kΩ balanced |
| Frequency response | ±0.5 dB, 10 Hz to 65 kHz |
| Crosstalk | < −115 dB @ 1 kHz and 10 kHz |
| THD+N @ 0 dBu (1 kHz) | 0.0016% (−96 dB) |
| SNR | 99 dB A-weighted |
| XLR | Pin 2 (Hot), Pin 3 (Cold), Pin 1 (Shield) |
| 1/4-inch TRS line input | Tip (Hot), Ring (Cold), Sleeve (Shield) |
| Pad | −10 dB |
| HPF | −3 dB @ 100 Hz, 2nd order (12 dB/octave) |
लाइन इनपुट्स
| स्पेसिफिकेशन | मान |
|---|
| Line gain | −10 to +48 dB |
| Maximum input level | +22 dBu |
| THD+N @ 0 dBu, 1 kHz | 0.0013% (−97 dB) |
D.I. / इंस्ट्रूमेंट इनपुट
| स्पेसिफिकेशन | मान |
|---|
| D.I. gain | 0 to +68 dB (with +10 dB digital Gain Boost) |
| Maximum input level | +15 dBu |
| Input impedance | 500 kΩ unbalanced |
| Frequency response | ±0.5 dB, 10 Hz to 40 kHz |
| THD+N @ 0 dBu (1 kHz) | < 0.06% |
| SNR | 96 dB A-weighted |
| 1/4-inch TS jack | Tip (Hot), Sleeve (Shield) |
एनालॉग-to-डिजिटल converter
| स्पेसिफिकेशन | मान |
|---|
| Maximum input level | +18 dBu (0 dBFS digital maximum) |
| Digital reference level | +18 dBu = 0 dBFS |
| Input impedance | > 10 kΩ balanced |
| Crosstalk | < −118 dB @ 1 kHz, < −115 dB @ 10 kHz |
| Frequency response | ±0.5 dB, 10 Hz to Fs/2 (Nyquist) |
| THD+N @ −1 dBFS (1 kHz) | < 0.0003% (−110 dB) |
| Dynamic range | 120 dB A-weighted |
| Balanced input | Tip (Hot), Ring (Cold), Sleeve (Shield) |
Digital-to-एनालॉग converter
| स्पेसिफिकेशन | मान |
|---|
| Maximum output level | +18 dBu (0 dBFS digital maximum) |
| Output impedance | < 100 Ω |
| Crosstalk | < −120 dB @ 1 kHz, < −115 dB @ 10 kHz |
| Frequency response | ±0.5 dB, 10 Hz to Fs/2 (Nyquist) |
| THD+N @ −1 dBFS (1 kHz) | < 0.00026% (−111.5 dB) |
| Dynamic range | 124 dB unweighted, 126.5 dB A-weighted |
| 1/4-inch TRS output | Tip (Hot), Ring (Cold), Sleeve (Shield) |
Headphone आउटपुट्स
| स्पेसिफिकेशन | मान |
|---|
| Maximum output level | +18 dBu (0 dBFS digital maximum) |
| Output impedance | < 50 Ω unbalanced |
| Crosstalk | < −117 dB @ 1 kHz, −112 dB @ 10 kHz |
| Frequency response | ±0.5 dB, 10 Hz to Fs/2 |
| THD+N @ −1 dBFS (1 kHz) | < 0.00023% (−112 dB) |
| Dynamic range | 121 dB unweighted, 124 dB A-weighted |
| Max level into 30 Ω | 4 V peak, 2.85 V RMS, 530 mW |
| Max level into 60 Ω | 5.82 V peak, 4.12 V RMS, 565 mW |
| Max level into 600 Ω | 8.71 V peak, 6.16 V RMS, 126 mW |
| 1/4-inch stereo jack | Tip (Left), Ring (Right), Sleeve (Ground) |
USB 2.0 High Speed
| स्पेसिफिकेशन | मान |
|---|
| Input channels | 24 (8 analogue, 16 digital) |
| Physical output channels | 32 (16 analogue, 16 digital) |
| Maximum simultaneous unique USB output channels | 24 |
| Connector | USB Type-C |
| Included cable | 1 m USB 2.0 Type-C to Type-C |
32-आउटपुट figure iD48 के उपलब्ध एनालॉग/डिजिटल आउटपुट destinations को दर्शाता है। USB पर एक ही समय में अधिकतम 24 unique output channels उपयोग किए जा सकते हैं। रूटिंग model के लिए System पैनल, Routing और Talkback देखें।
Digital इनपुट
| स्पेसिफिकेशन | मान |
|---|
| 2 × 8-channel ADAT | 44.1 kHz to 48 kHz |
| 2 × 4-channel ADAT | 88.2 kHz to 96 kHz (SMUX) |
| Stereo S/PDIF | 44.1 kHz to 96 kHz |
Digital आउटपुट
| स्पेसिफिकेशन | मान |
|---|
| 2 × 8-channel ADAT | 44.1 kHz to 48 kHz |
| 2 × 4-channel ADAT | 88.2 kHz to 96 kHz (SMUX) |
| Stereo S/PDIF | 44.1 kHz to 96 kHz |
Word Clock इनपुट/आउटपुट
| स्पेसिफिकेशन | मान |
|---|
| Word Clock | 44.1 kHz to 96 kHz |
| Word Clock input termination | 75 Ω |
DSP मिक्सर latency
Round-trip इनपुट-to-आउटपुट latency:
| Sample rate | Latency |
|---|
| 44.1 kHz | 0.344 ms |
| 48 kHz | 0.312 ms |
| 88.2 kHz | 0.188 ms |
| 96 kHz | 0.177 ms |

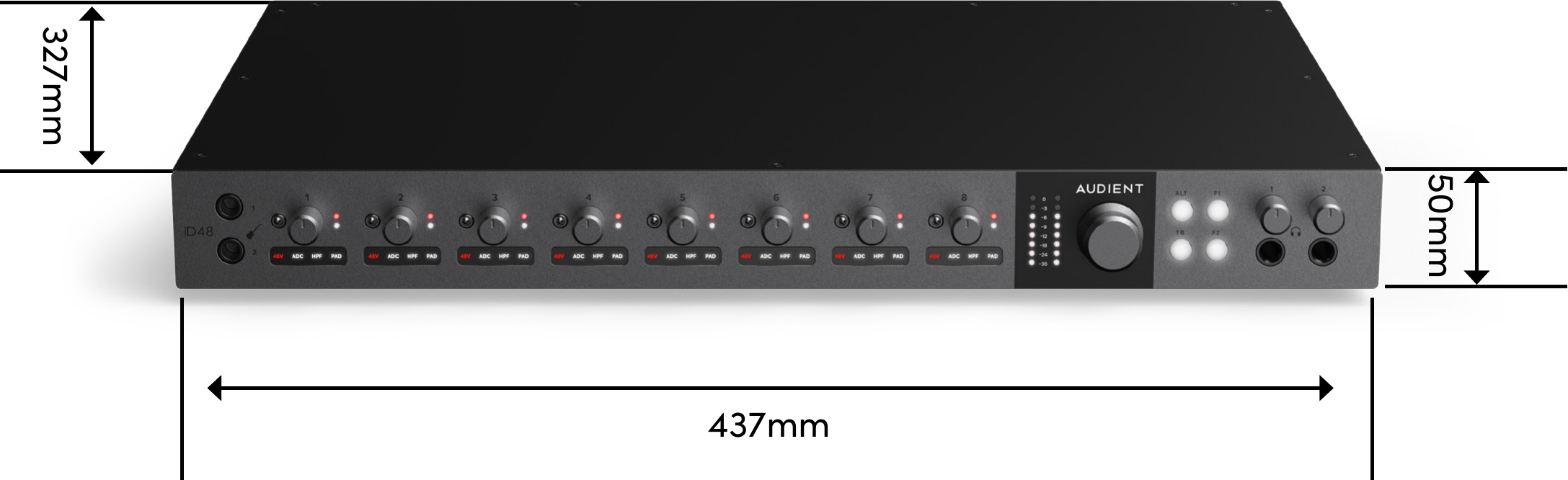

आयाम
- Width: 437 mm
- Depth: 327 mm
- Height: 50 mm
- Weight: approximately 3.9 kg
