iD44 MKII Manual

iD44 MKII is a 20-in, 24-out USB-C audio interface with four Audient Console Mic Preamps, two JFET instrument inputs, two balanced analogue inserts, optical digital expansion and flexible hardware and software monitoring.

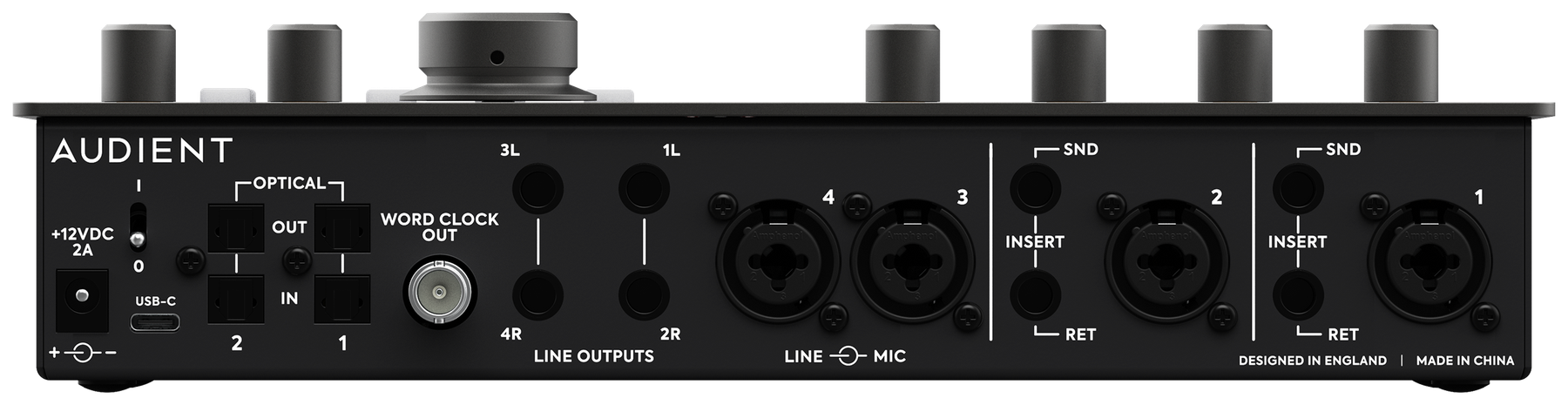

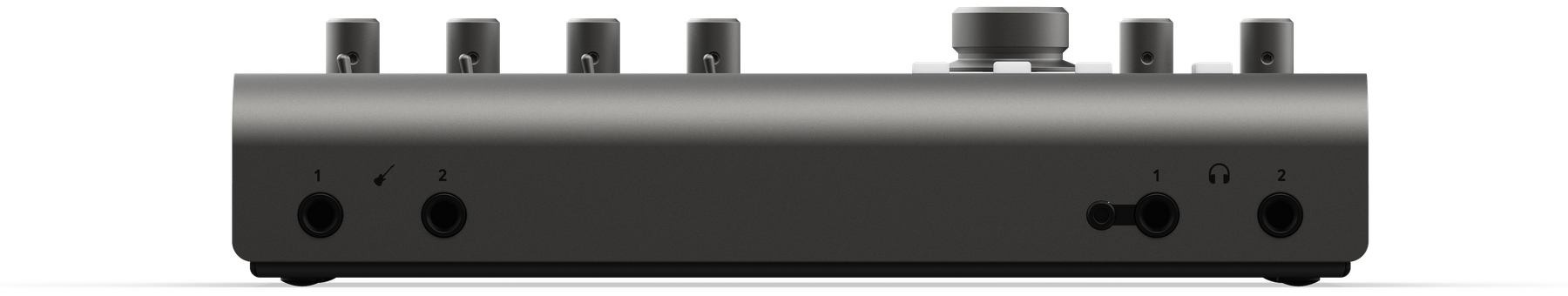

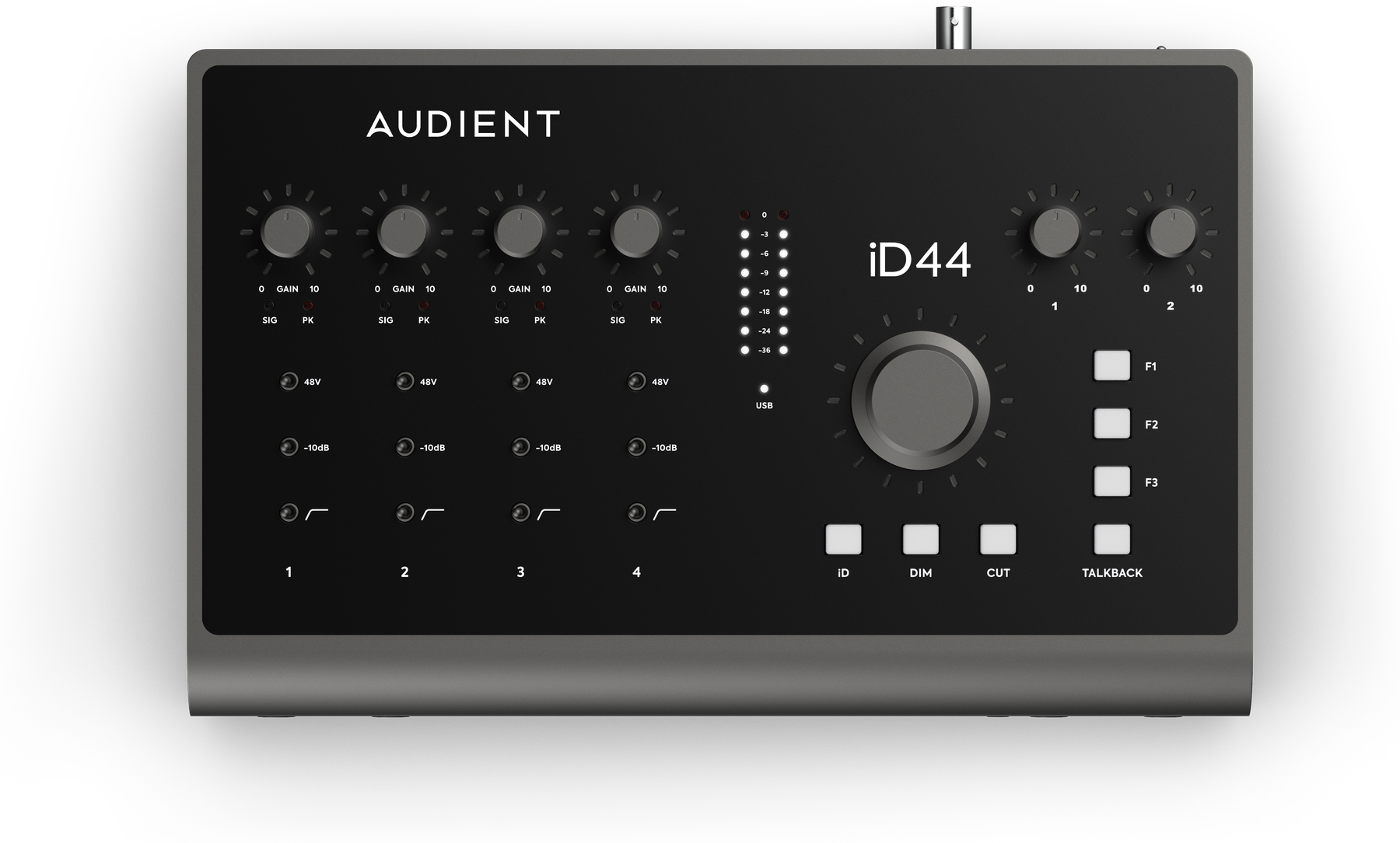

iD44 MKII top control surfaceiD44 MKII front paneliD44 MKII rear panel

What’s in the box​

  • iD44 MKII
  • 12 V DC power supply with regional adapters
  • 1.5 m USB-C to USB-C cable
  • Quick Start Guide

Features​

  • 4 × Audient Console Mic Preamps
  • AD/DA converters
  • 2 × JFET instrument inputs
  • 2 × balanced analogue inserts
  • 2 × optical digital inputs and 2 × optical digital outputs supporting ADAT and S/PDIF
  • 4 × balanced line outputs
  • 2 × independent headphone output channels
  • Word Clock output
  • Main and alternative-speaker monitoring
  • 3 × programmable Function Keys
  • dedicated Talkback, Dim and Cut controls
  • ScrollControl
  • low-latency DSP mixer
  • Audio Loopback
  • standalone operation
  • USB 2.0 High Speed connection via USB-C
  • up to 24-bit, 96 kHz operation
  • all-metal enclosure

Hardware layout​

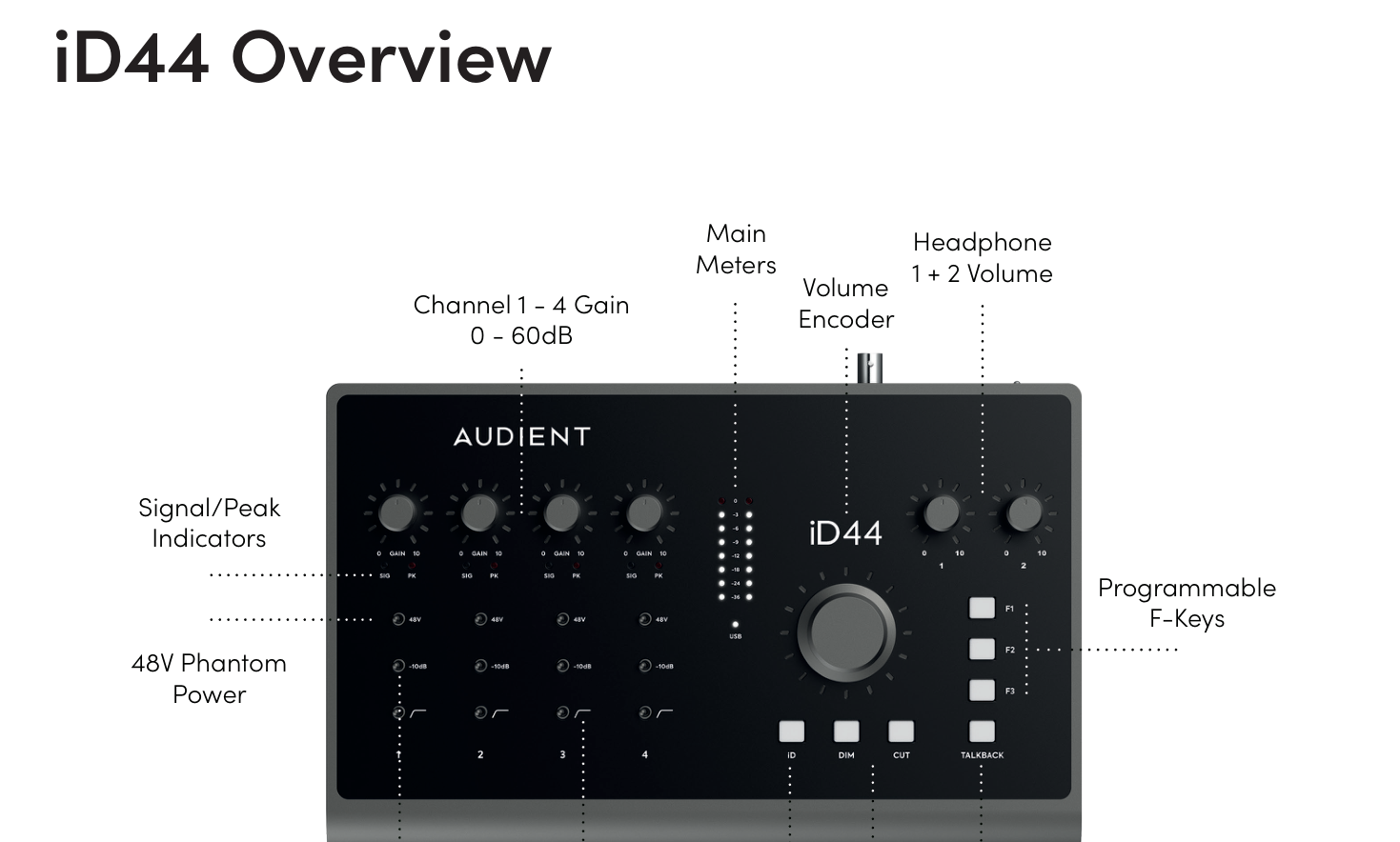

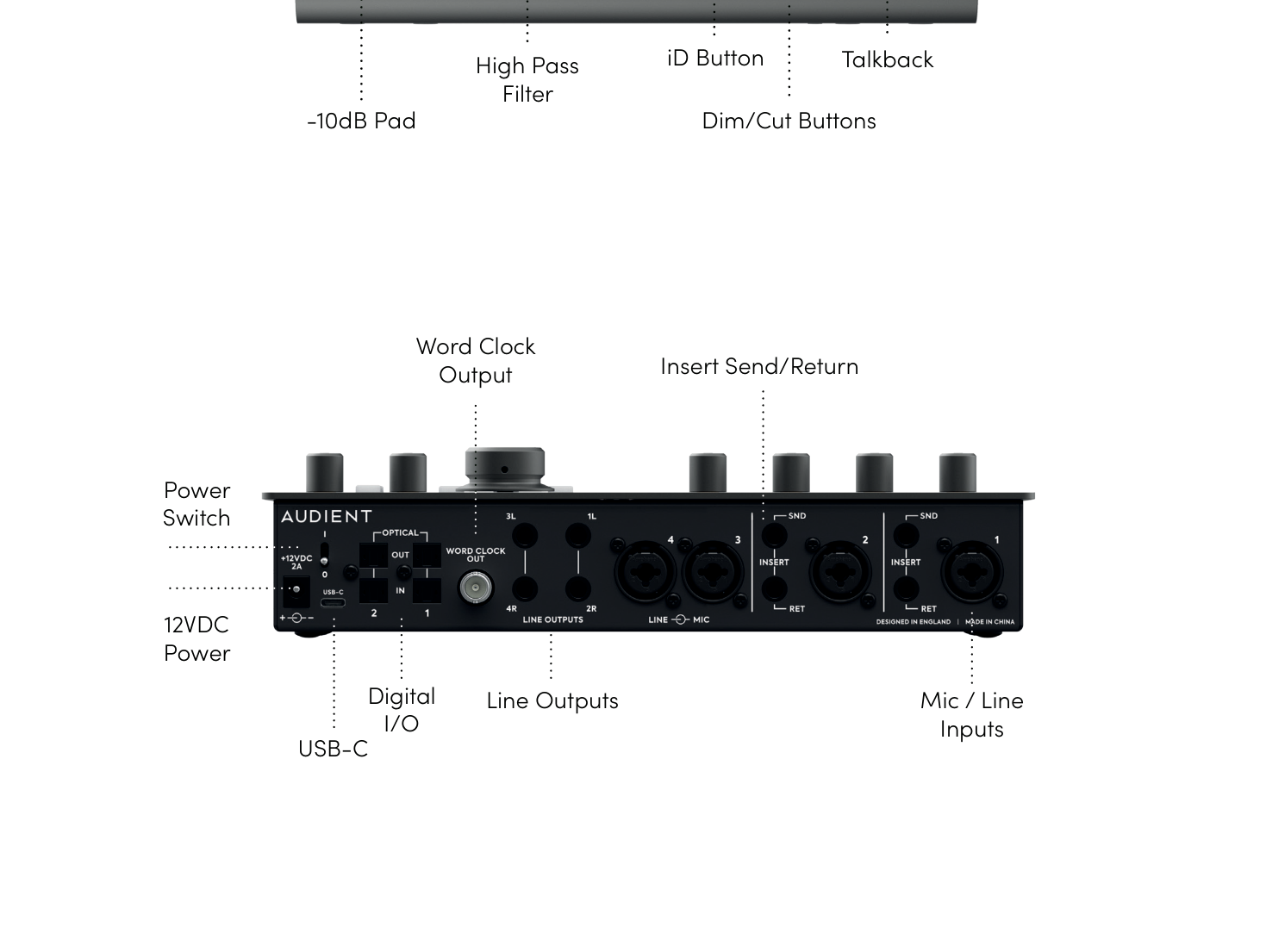

Labelled iD44 MKII top-panel hardware overview Labelled iD44 MKII rear-panel hardware overview

Continue setup​

Go to Installation and Firmware to install the current iD software, connect the interface and check firmware.
