iD24 Manual

iD24 is a 10-input, 14-output USB-C audio interface with two Audient Console mic preamps, ADAT/S/PDIF optical I/O, balanced inserts, word-clock output, low-latency DSP monitoring and audio loopback.

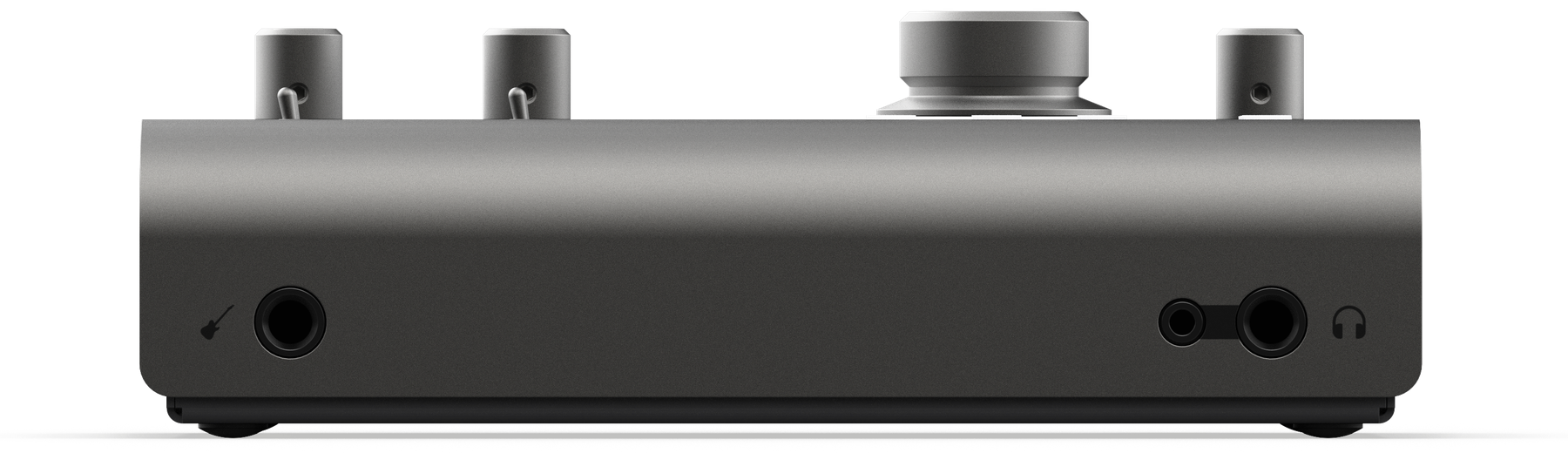

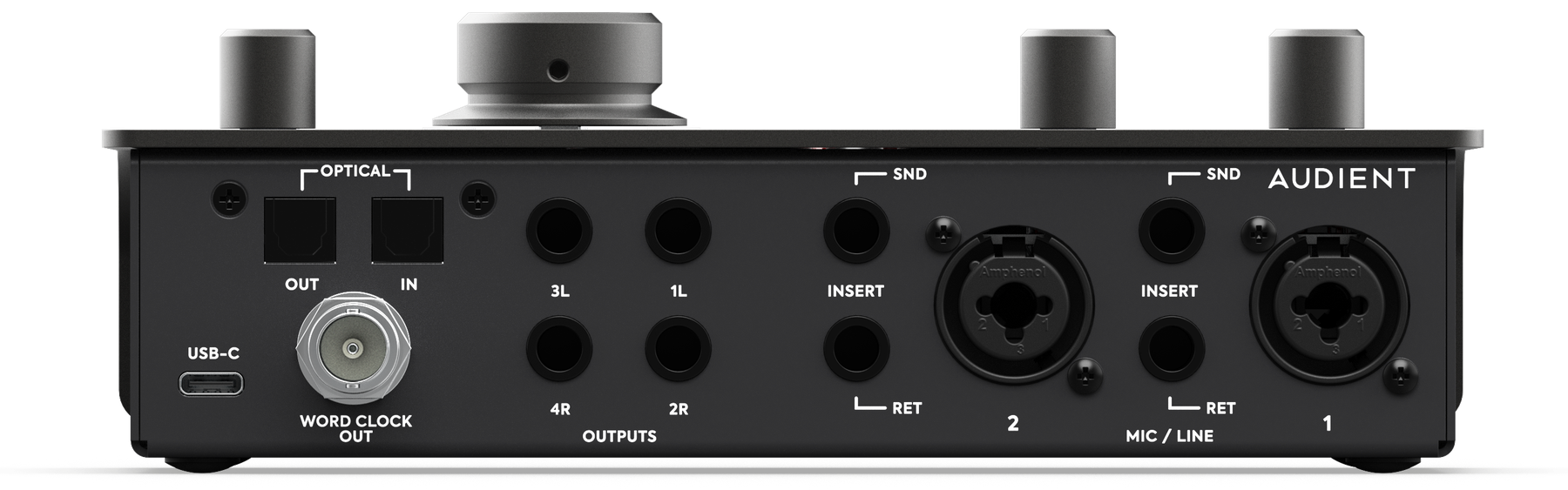

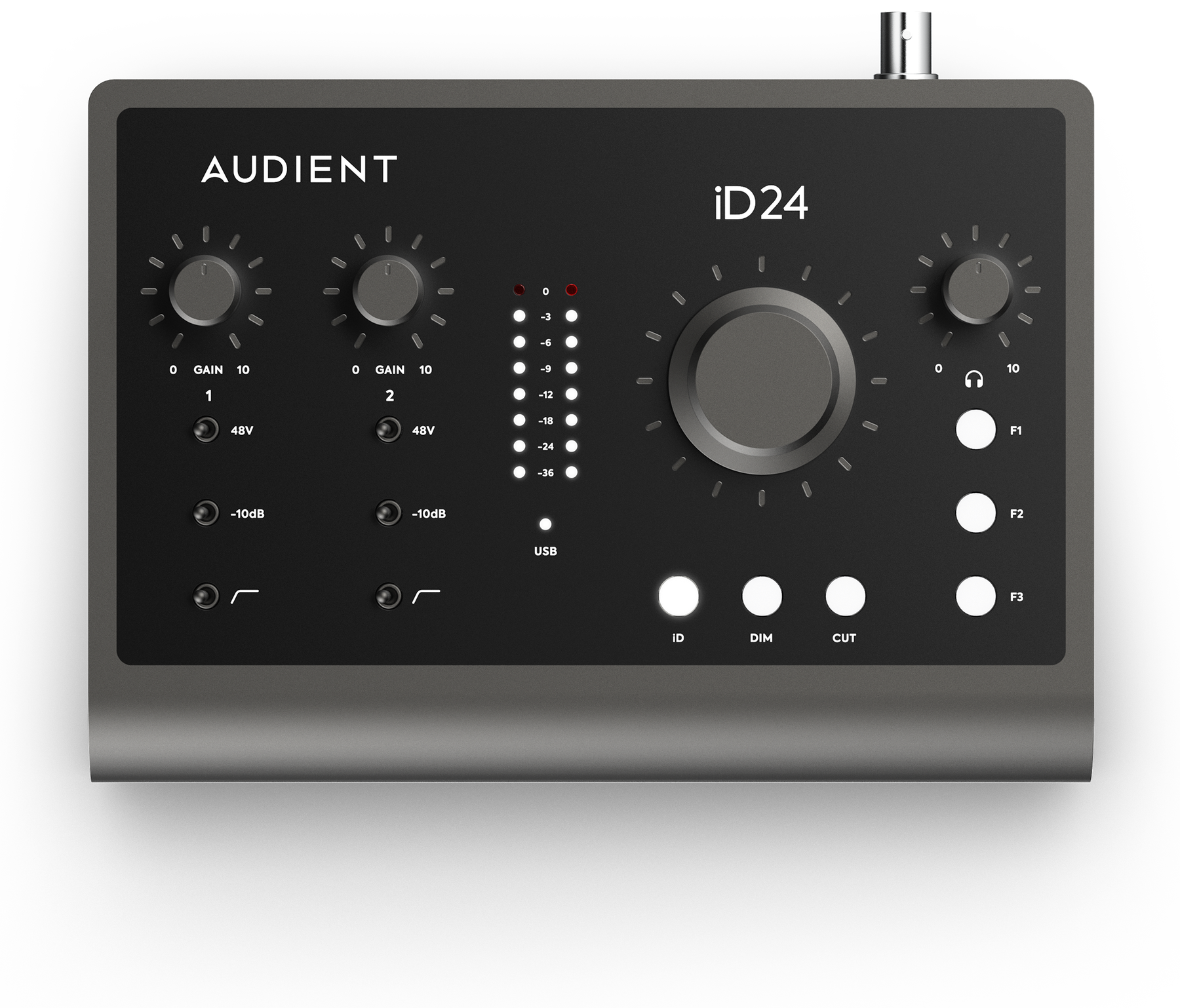

iD24 top control surfaceiD24 front paneliD24 rear panel

What’s in the box​

  • iD24
  • USB Type-C cable
  • Quick Start Guide

Key features​

  • 2 × Class-A Audient Console mic preamps
  • AD/DA conversion
  • 1 × discrete JFET instrument input
  • Four balanced line outputs for Main and Alt speaker pairs
  • Dual front-panel headphone sockets carrying the same stereo headphone mix
  • ADAT or stereo S/PDIF optical input and output
  • 2 × fully balanced insert send/return paths
  • Ultra-low-latency DSP mixer
  • Audio loopback
  • ScrollControl
  • 3 × user-assignable function keys
  • Dedicated Dim and Cut controls
  • Independent 48V, -10 dB pad and high-pass filter controls for the two analogue input channels
  • Word-clock output
  • Up to 24-bit, 96 kHz operation
  • All-metal construction
  • Free software and plug-ins/resources available through Audient ARC

Hardware overview​

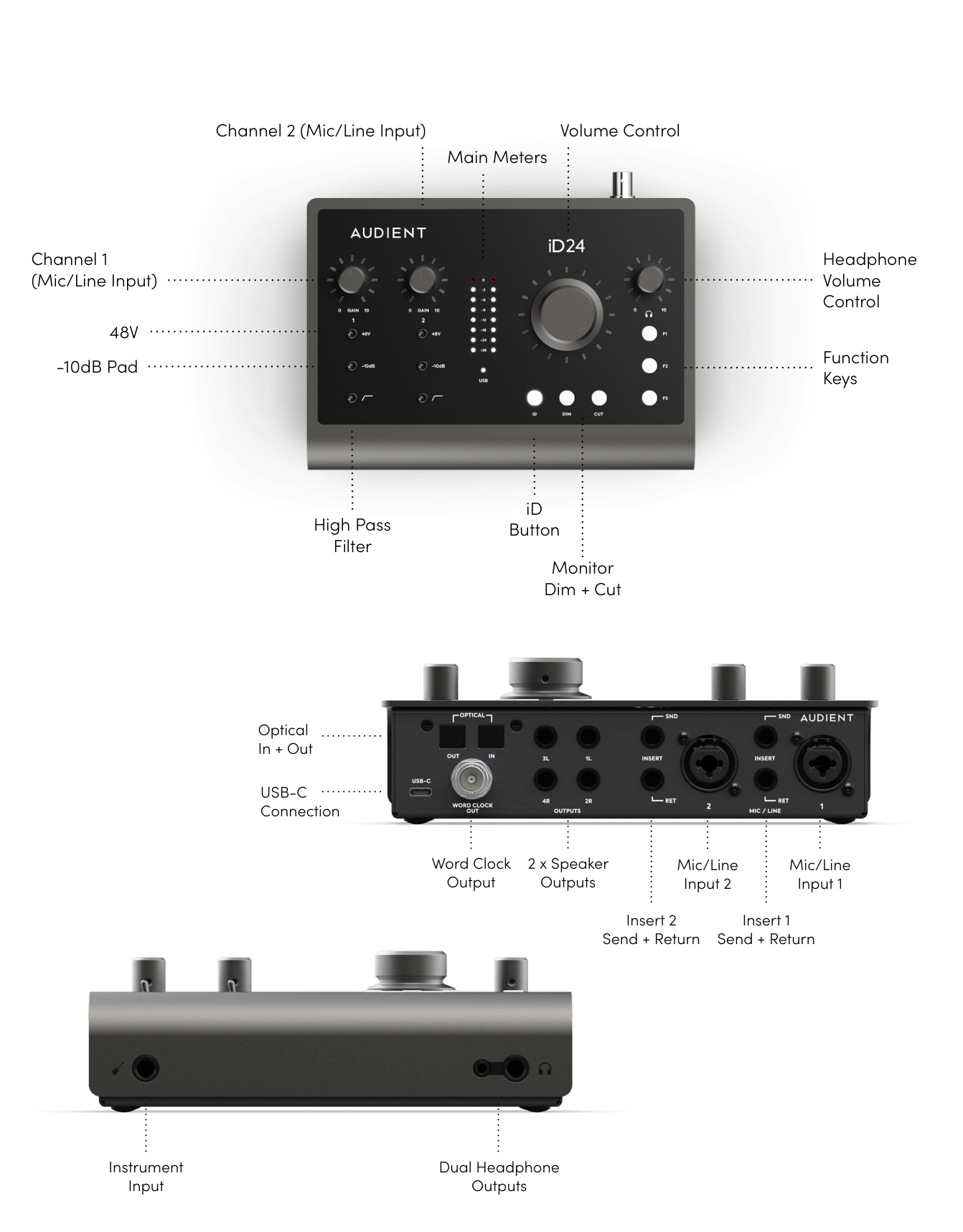

Labelled iD24 front, rear and side connections

The rear panel carries the two mic/line inputs, insert send/returns, four line outputs, optical input/output, word-clock output and USB-C connection. The front edge provides the JFET instrument input and two headphone sockets.
