Equaliser
ASP4816-SE provides a four-band splittable EQ on each main channel. The HF/LF shelving section and the MIDS parametric section can be switched in/out and moved independently between LF and SF paths.
| Band | Type | Frequency | Gain | Q |
|---|---|---|---|---|
| HF | Shelving | 10 kHz / 18 kHz AIR | ±15 dB | — |
| HMF | Parametric | 450 Hz–20 kHz | ±15 dB | 0.65–3.8 |
| LMF | Parametric | 50 Hz–1.5 kHz | ±15 dB | 0.65–3.8 |
| LF | Shelving | 50 Hz / 100 Hz | ±15 dB | — |

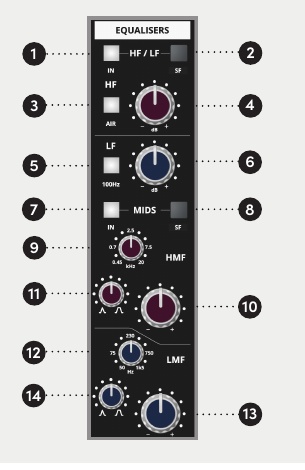

Controls
- HF/LF IN — places the shelving section in circuit.
- HF/LF SF — moves the shelving section from LF to SF.
- AIR — switches the HF shelf from 10 kHz to 18 kHz.
- 100 Hz — switches the LF shelf from 50 Hz to 100 Hz.
- MIDS IN — places the parametric mid section in circuit.
- MIDS SF — moves the MIDS section from LF to SF.
- Frequency / Gain / Q — set the centre frequency, boost/cut and bandwidth of each parametric mid band.
The Q controls cover approximately 0.4 octave (Q 3.8) to 2 octaves (Q 0.65).
