Studio, Foldback and Control Room

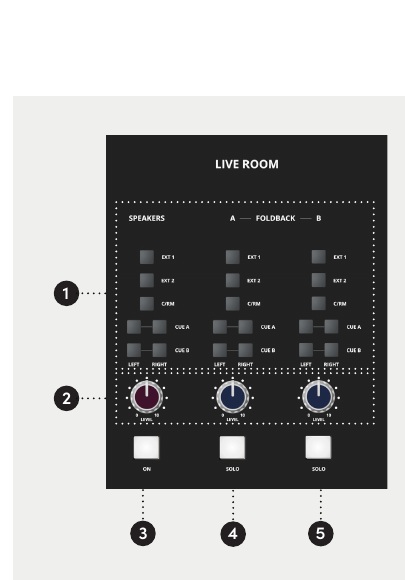

Studio speakers and foldback
The Studio Speaker output and both Foldback outputs can select from EXT 1, EXT 2, C/RM, Cue A and Cue B.
Cue A and Cue B are mono buses that can be assigned independently to the left and right channels. For example, assigning Cue A to Left and Cue B to Right creates a stereo cue mix.
| Control | Function |
|---|---|
| Source Select | Selects EXT 1, EXT 2, C/RM and Cue A/B for Studio or Foldback |
| Studio Level | Sets the Studio Speaker output level |
| Foldback A/B Level | Sets each Foldback output level independently |
| Studio ON | Enables the Studio Speaker output |
| Foldback A/B SOLO | Auditions the selected Foldback output through Control Room; always AFL |
note
Studio and Foldback connections are line-level outputs. Use active monitors or a suitable loudspeaker amplifier for the Studio output, and an appropriate headphone amplifier/distribution system for Foldback.

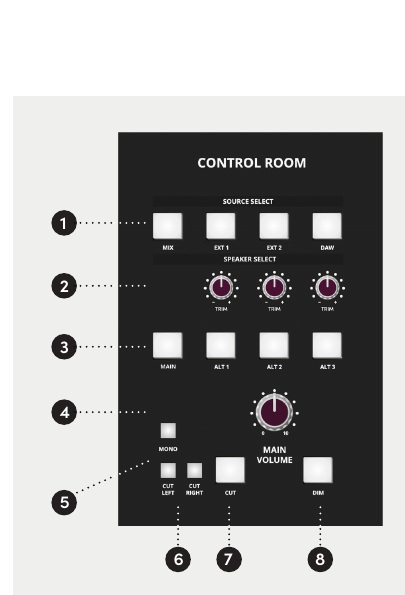

Control Room monitoring
ASP4816-SE provides four stereo control-room monitor outputs: Main, Alt 1, Alt 2 and Alt 3. Sources are MIX, EXT 1, EXT 2 and DAW.
On the SE, MAIN VOLUME controls the Main and all ALT outputs. ALT 1–3 each have a TRIM control for level matching.
| Control | Function |
|---|---|
| Source Select | Selects MIX, EXT 1, EXT 2 or DAW |
| ALT 1–3 TRIM | Matches each alternate speaker system to the Main reference level |
| Speaker Select | Selects Main or ALT 1–3 |
| MAIN VOLUME | Master monitor level for Main and ALT outputs |
| MONO | Sums the monitor signal to mono for compatibility checking |
| CUT LEFT / RIGHT | Independently mutes the left or right monitor channel |
| CUT | Mutes the monitor output |
| DIM | Reduces the control-room monitor level by 15 dB |
