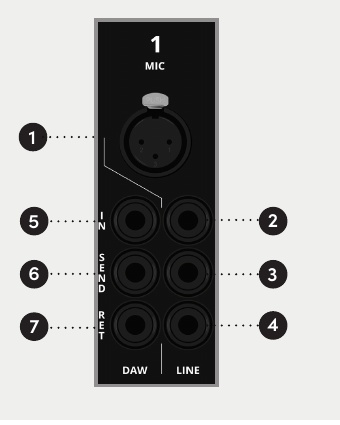

Input Connections

No.	Connector	Function
1	Microphone Input	XLR input for microphones and other suitable low-level sources
2	Line Input	TRS line-level input, selected with MIC/LINE
3	Mic/Line Insert Send	Permanently active Mic/Line send; may also be used as an additional output
4	Mic/Line Insert Return	Return from external processing; engage Mic/Line INSERT IN to use it
5	DAW Input	TRS line-level input intended for the analogue output of a DAW interface/converter
6	DAW Insert Send	Permanently active DAW send; may also be used as an additional output
7	DAW Insert Return	Return from external processing; engage DAW INSERT IN to use it

note

FLIP does not exchange the physical insert connections. The Mic/Line insert connectors always carry the Mic/Line source, while the DAW insert connectors always carry the DAW source.
