Input Pod

Each main channel provides a mutually exclusive Mic/Line input and a dedicated DAW input. In the normal configuration, Mic/Line feeds the SF path and DAW feeds the LF path. FLIP reverses these assignments.

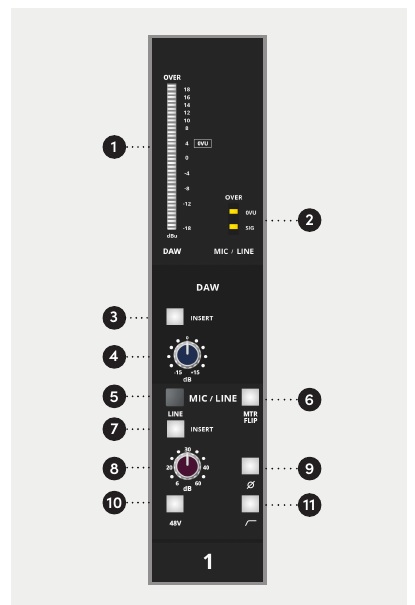

No.	Control	Function
1	20-segment meter	Normally displays the DAW input level
2	3-segment meter	Normally displays the Mic/Line level
3	DAW INSERT IN	Places the DAW insert return into circuit
4	DAW TRIM	±15 dB input trim
5	MIC/LINE	Press to select the Line input; released selects Mic
6	MTR	Swaps DAW and Mic/Line between the large and small meters
7	Mic/Line INSERT IN	Places the Mic/Line insert return into circuit
8	Mic/Line GAIN	Mic: +6 to +60 dB; Line: −14 to +40 dB
9	Ø Polarity Reverse	Reverses signal polarity
10	48 V	Enables phantom power for the Mic input
11	High-Pass Filter	Attenuates unwanted low-frequency content such as rumble

caution

Reduce the monitor level before switching 48 V phantom power on or off.
