Hardware and Connections

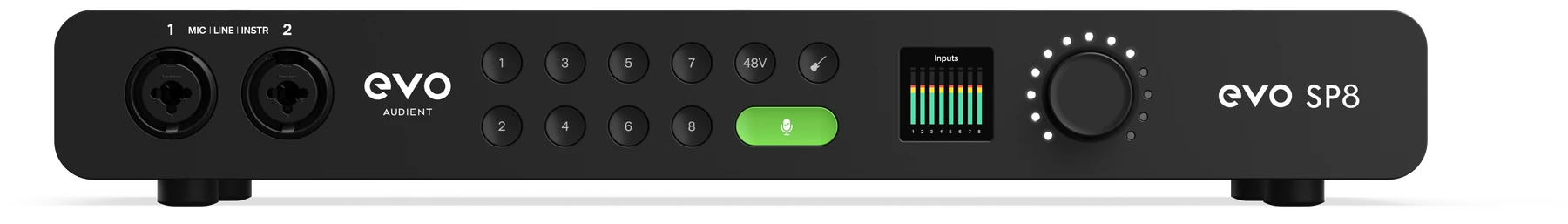

EVO SP8 front panel

Analogue inputs​

EVO SP8 provides eight mic/line inputs on combination XLR/TRS connectors.

  • Inputs 1–2 are on the front panel.
  • Inputs 3–8 are on the rear panel.
  • Connect microphones using XLR.
  • Connect balanced line-level sources using ¼-inch TRS.
  • Inputs 1 and 2 can also operate as JFET instrument inputs.

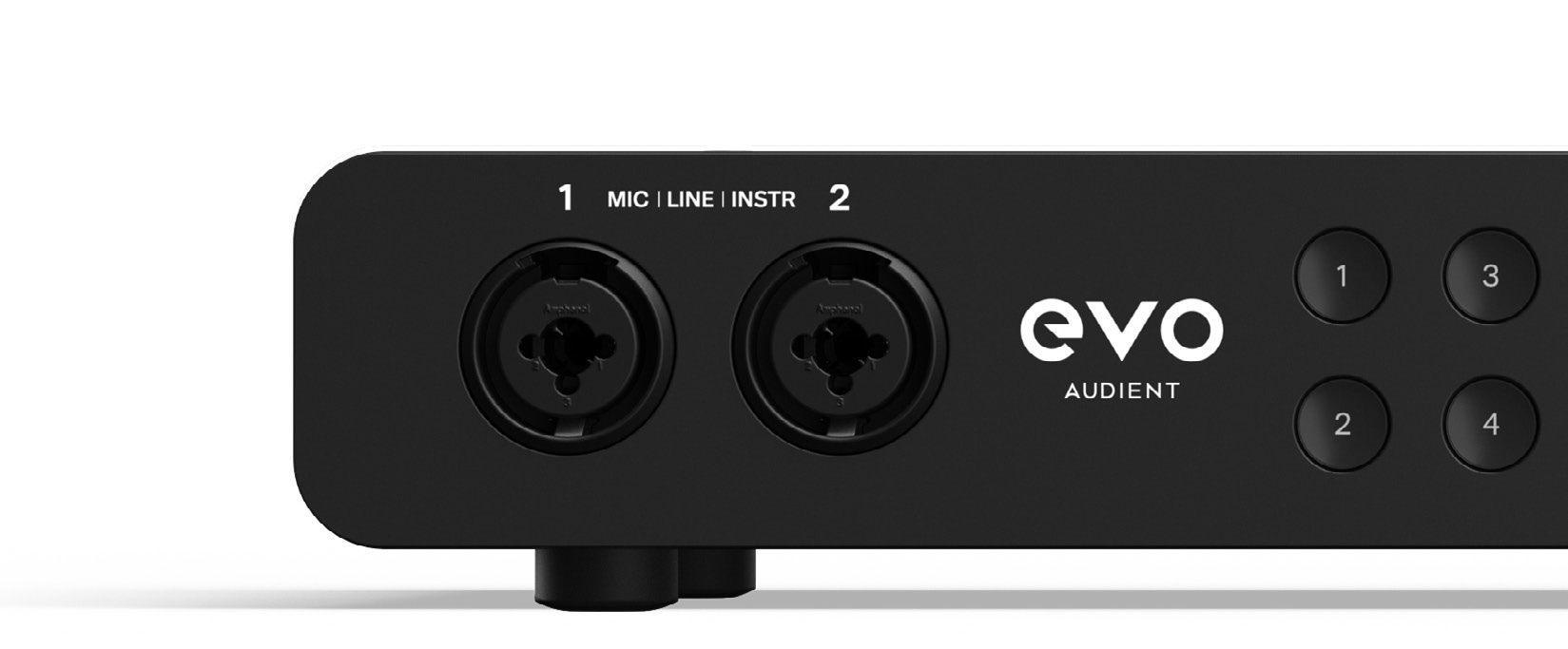

EVO SP8 front inputs

Analogue line outputs​

Eight balanced ¼-inch TRS line outputs are provided on the rear panel. Their source is selected in the Setup Menu as either Analogue or Digital.

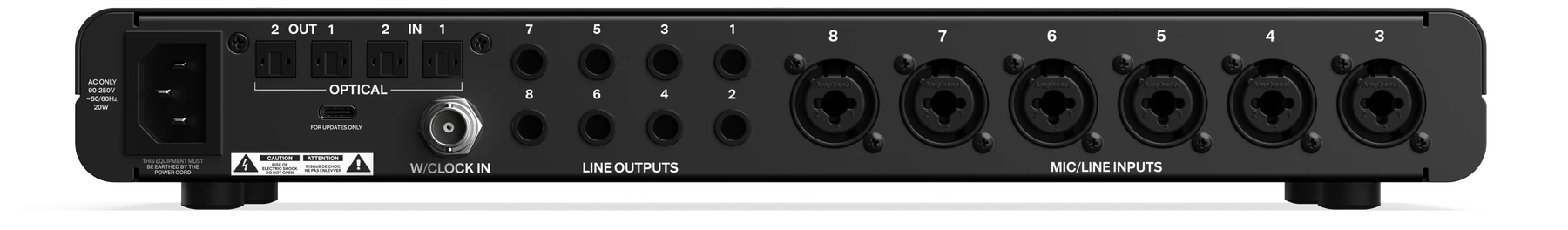

EVO SP8 rear panel and connections

ADAT optical I/O​

EVO SP8 provides two optical ADAT inputs and two optical ADAT outputs for multi-channel digital audio.

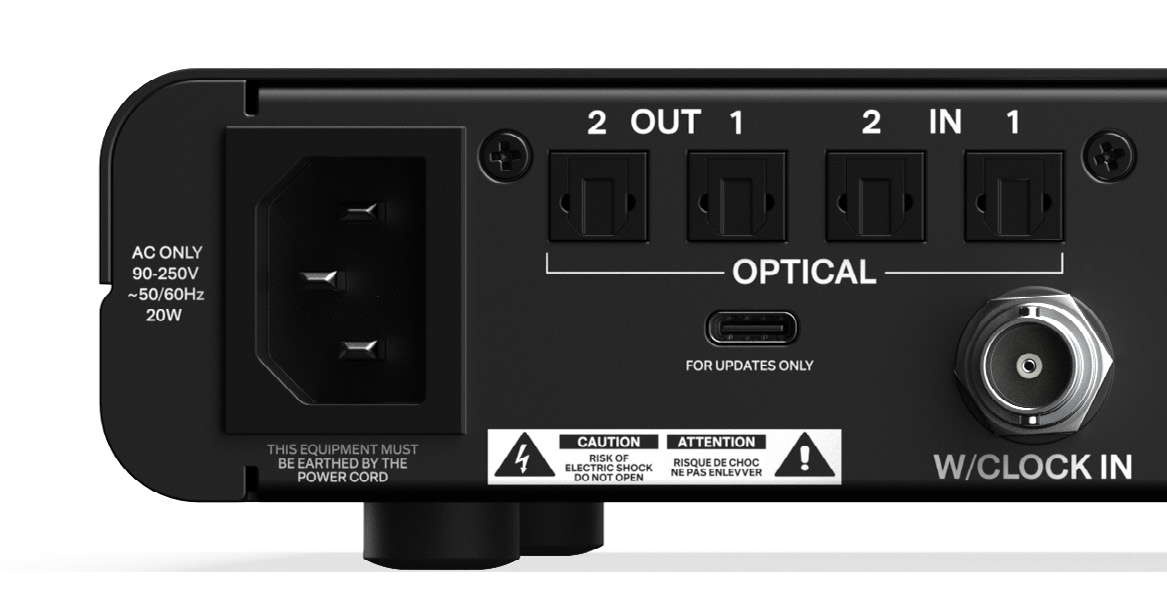

EVO SP8 rear digital connections

Word Clock Input​

The rear BNC Word Clock Input allows EVO SP8 to synchronise to an external word-clock source. EVO SP8 does not provide a word-clock output.

USB-C​

The rear USB-C port is labelled For Updates Only and is used for firmware updating with Audient DFU.

Power​

Connect EVO SP8 to mains power through its IEC mains inlet.
