Technical Specifications and Block Diagrams
Specifications
The following values are specified for ASP8024.
Frequency response
| Path | Specification |
|---|---|
| Mic input to Mix output | < +0 dB / −0.3 dB, 20 Hz–20 kHz @ 6–40 dB gain |
| Line input to Mix output | < +0 dB / −0.3 dB, 20 Hz–20 kHz @ 0 dB gain |
THD and noise at +20 dB output
| Path | Specification |
|---|---|
| Mic XLR input to any output | < 0.005% at 1 kHz |
| Line input to any output | < 0.005% at 1 kHz |
| Tape input to any output | < 0.003% at 1 kHz |
Noise
| Measurement | Specification |
|---|---|
| Mic EIN, 20 Hz–20 kHz, 150 Ω source | < −127.5 dBu |
| Bus noise, no inputs routed | < −93 dBu |
| Bus noise, 36 inputs routed | < −78 dBu |
Crosstalk and mute attenuation at 1 kHz
| Measurement | Specification |
|---|---|
| Short fader Mute | > 90 dB |
| Long fader Mute | > 90 dB |
| Mix assign | > 90 dB |
| Bus assign | > 90 dB |
Mic CMRR
- 70 dB at minimum gain.
- 75 dB at maximum gain.
Maximum input
| Input | Specification |
|---|---|
| Mic | > +21 dBu, minimum gain |
| Line | > +30 dBu, minimum gain |
| Insert return | > +21 dBu |
Maximum output into 2 kΩ
| Output | Specification |
|---|---|
| Mix output | > +26 dBu |
| Bus output | > +26 dBu |
| Aux output | > +26 dBu |
| Insert send | > +21 dBu |
| Monitor, Studio, F/B outputs | > +21 dBu |
Additional reference: ASP8024 Audio Specifications.
Block diagrams
Six system block diagrams are provided below. Select any diagram to open the original-size image in a new tab.

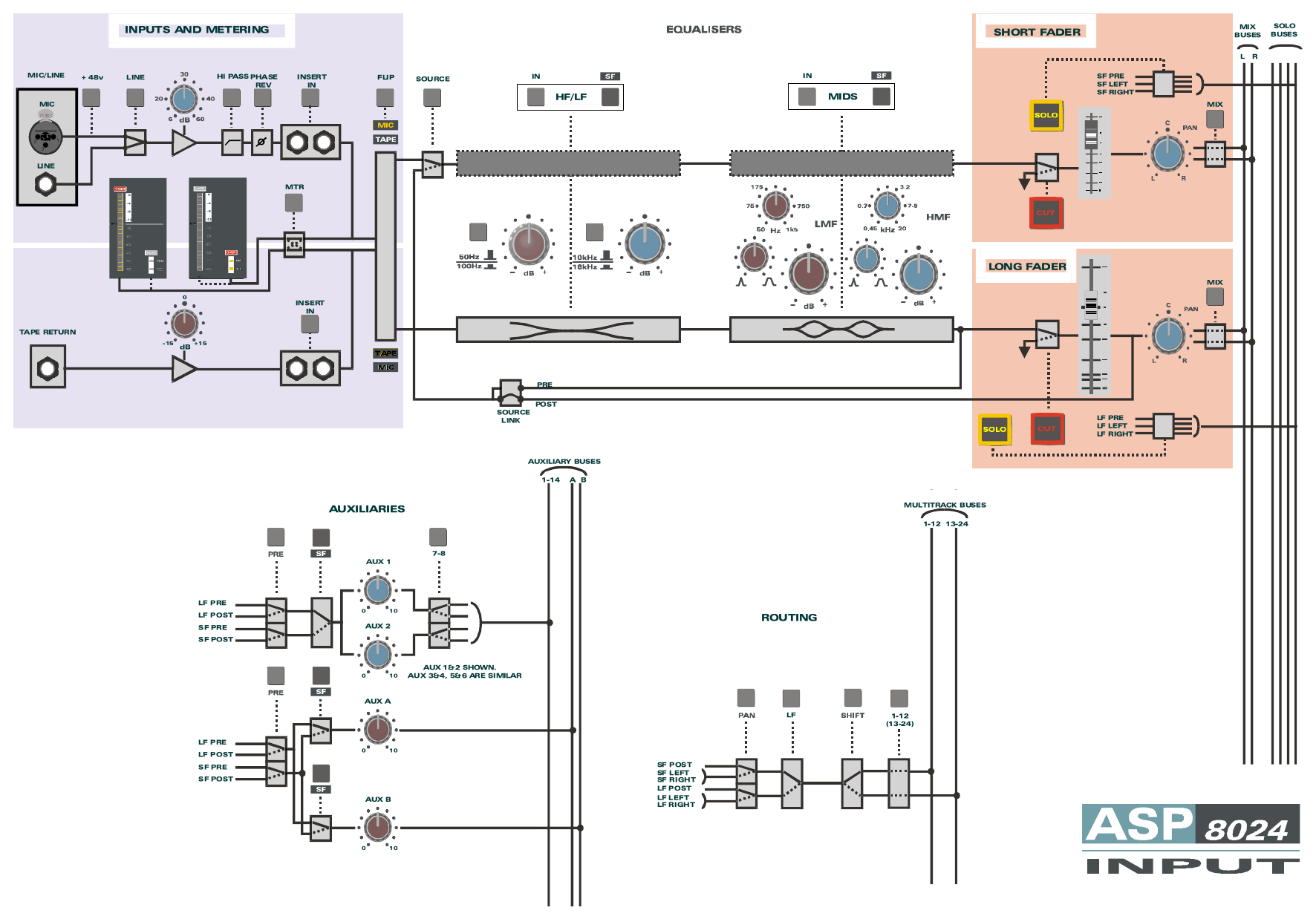

Input strip
Signal flow through the standard input strip, including inputs and metering, EQ, auxiliaries, short/long faders, routing, Mix and Solo buses.

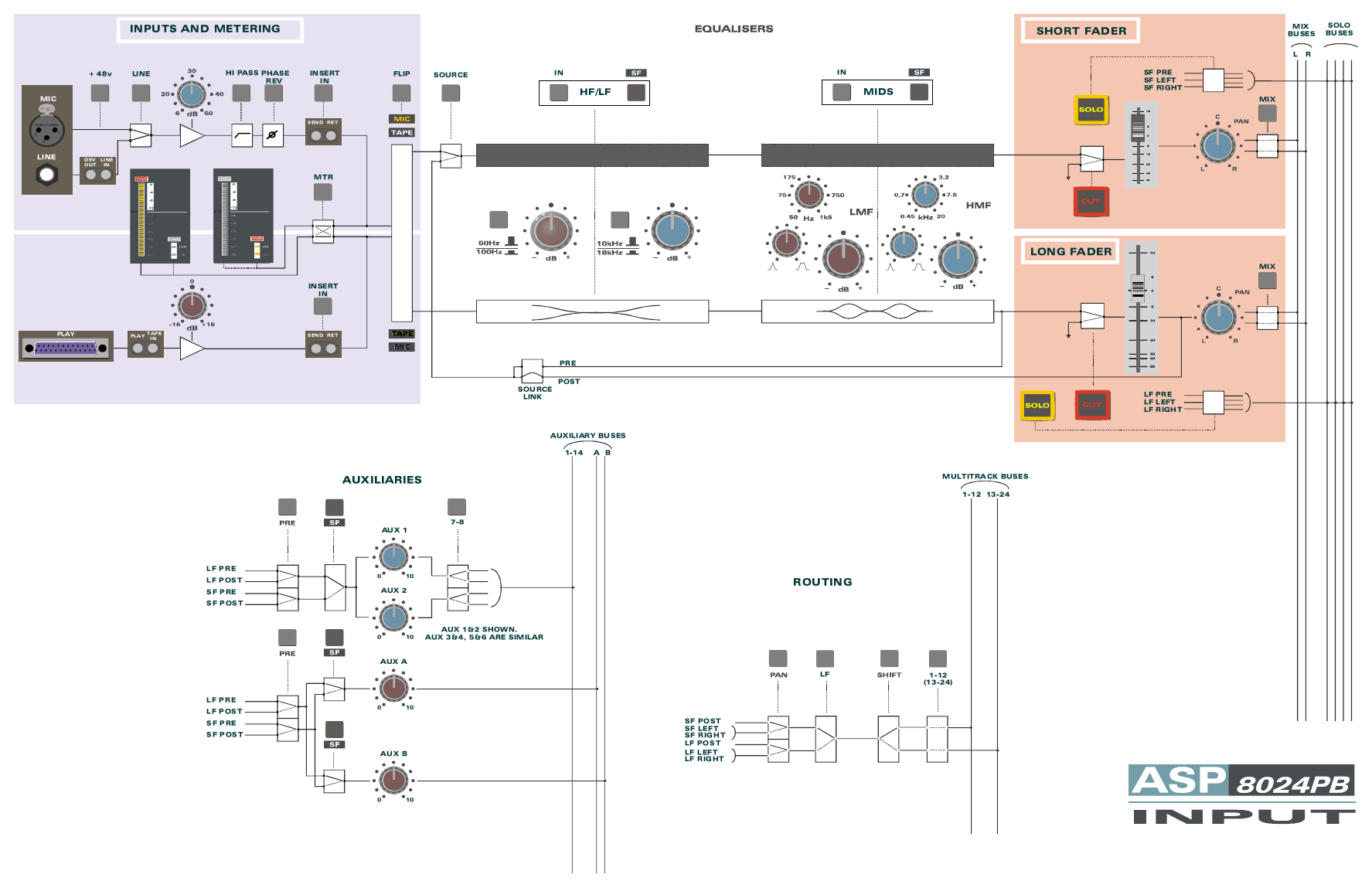

Patchbay version input strip
The corresponding input-strip signal flow for consoles fitted with the optional patchbay.

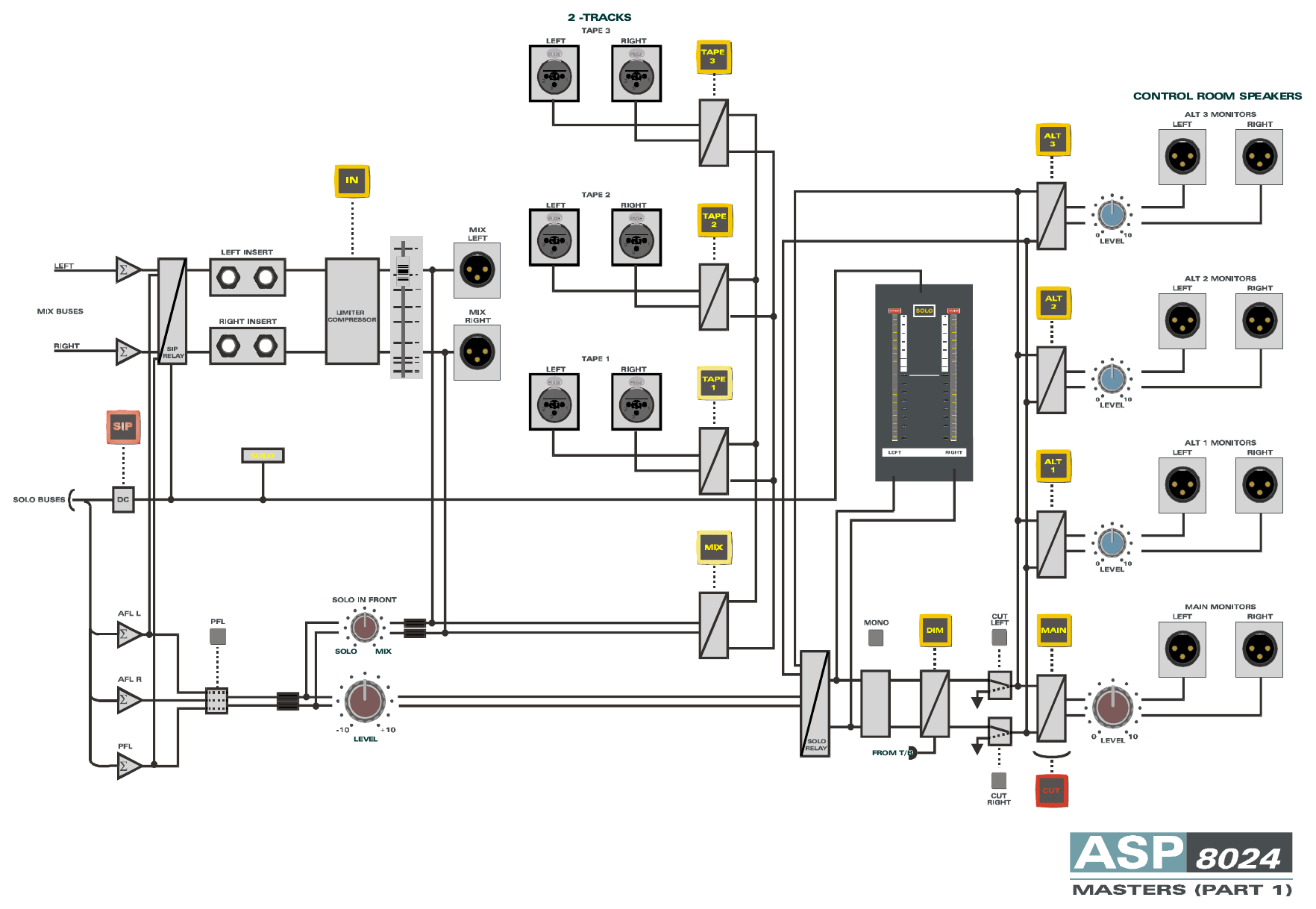

Masters - Part 1
Stereo and Solo buses, two-track returns, Solo system and Control Room monitoring.

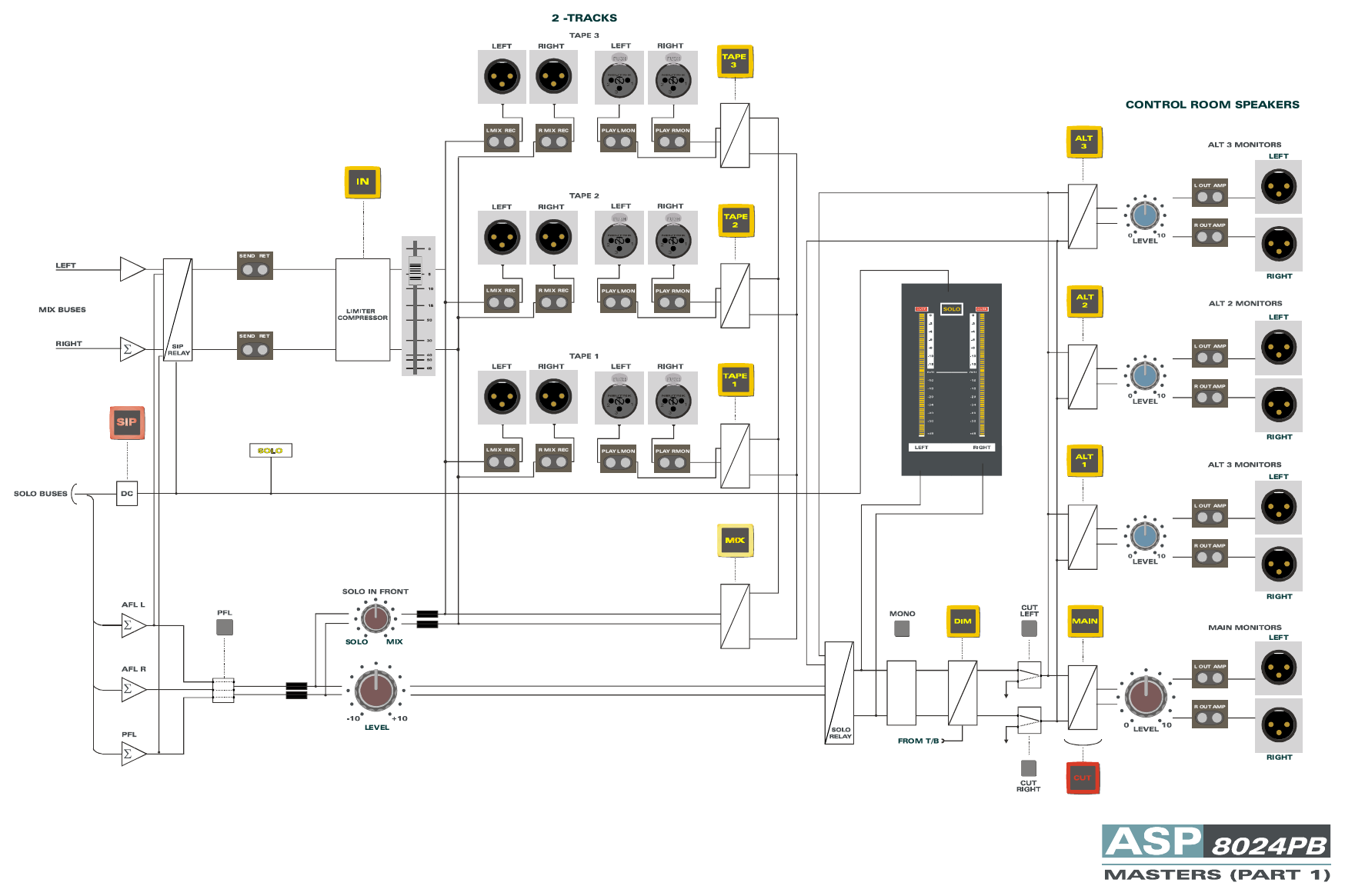

Patchbay version Masters - Part 1
The corresponding Masters Part 1 signal flow for a patchbay-equipped ASP8024.

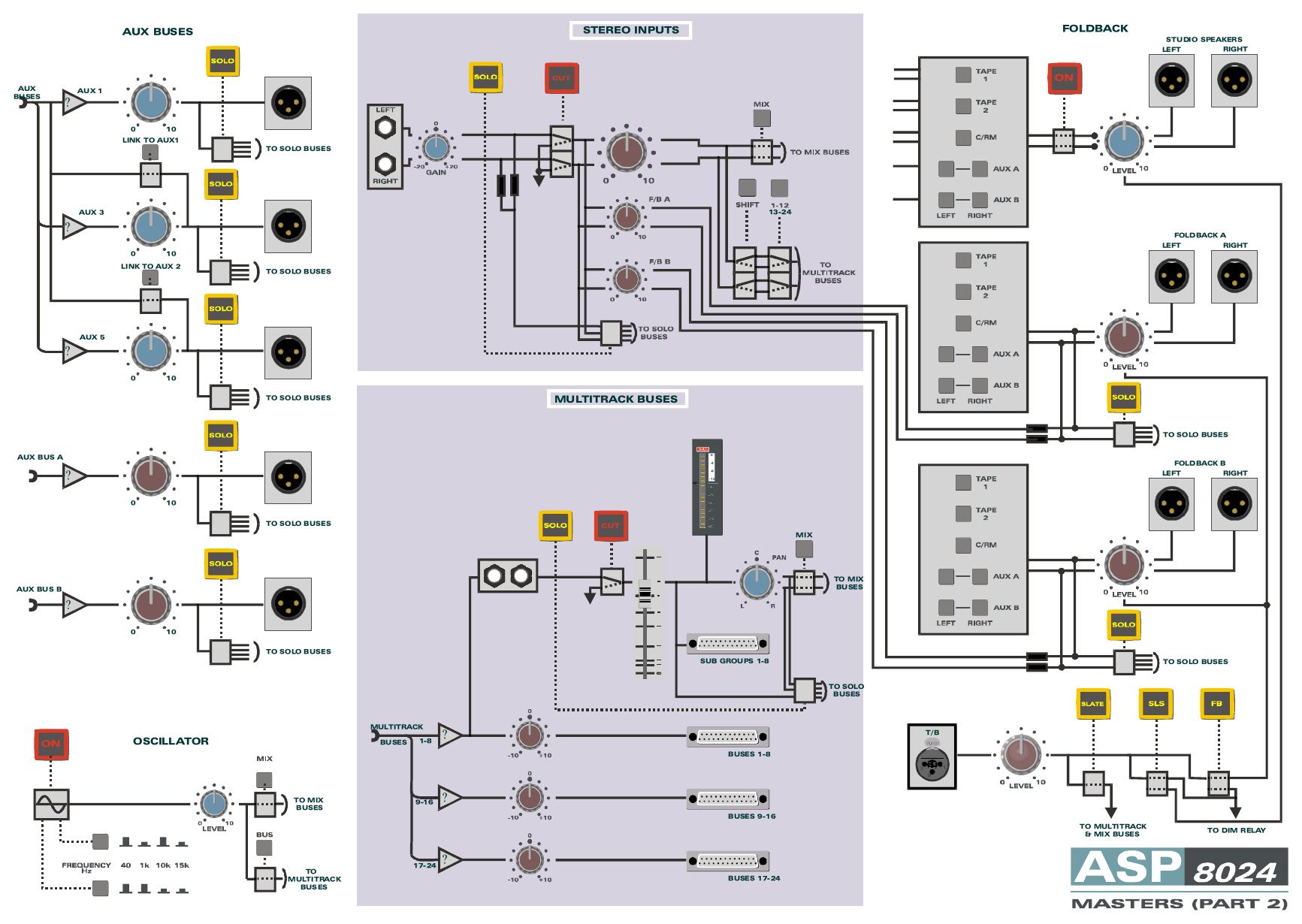

Masters - Part 2
Stereo inputs, auxiliary buses, multitrack buses, Foldback and Studio speakers, oscillator and talkback.

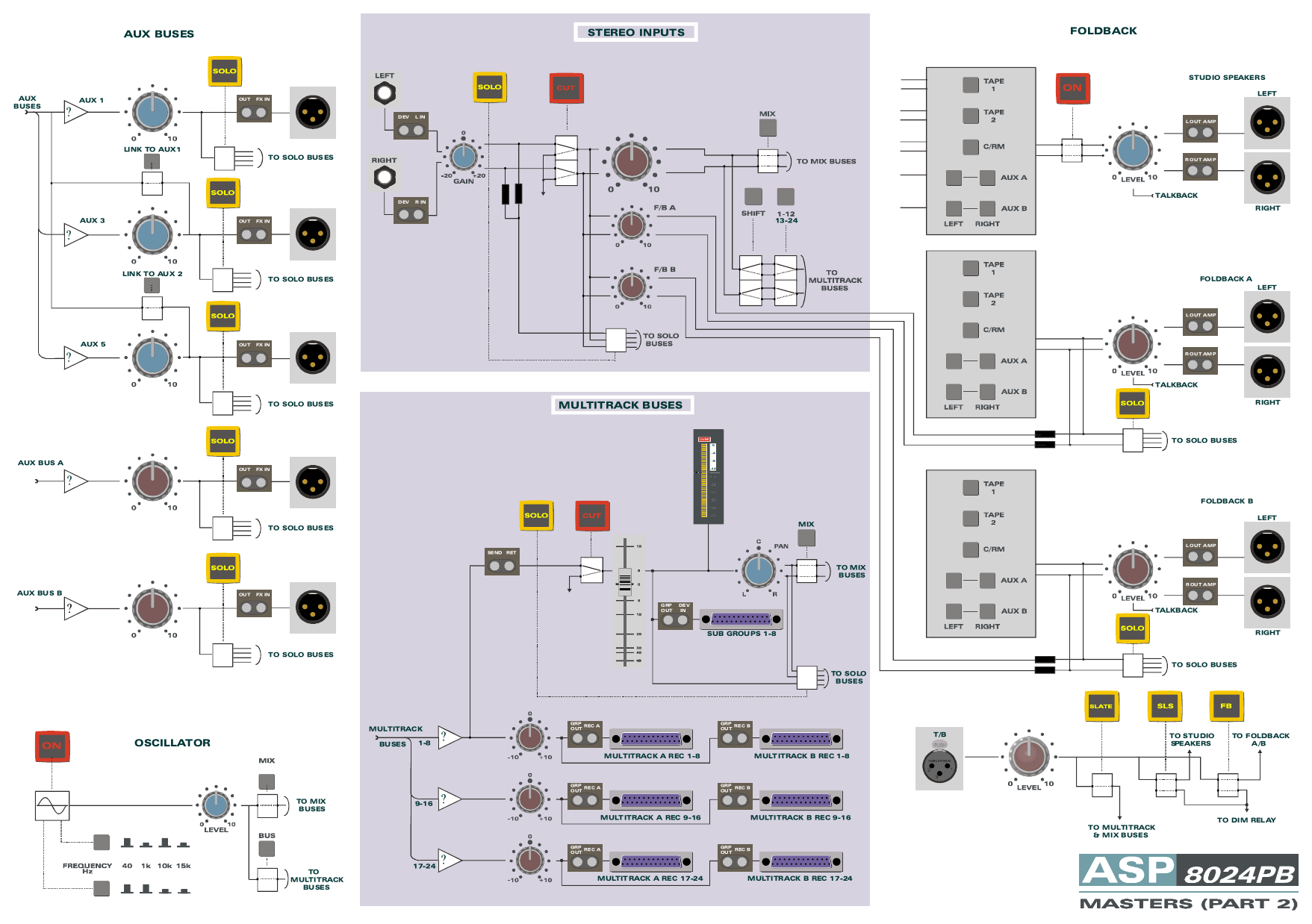

Patchbay version Masters - Part 2
The corresponding Masters Part 2 signal flow for a patchbay-equipped ASP8024.
