Oscillator and master Solo controls​

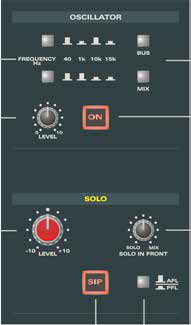

ASP4816 Classic oscillator and master solo controls

The oscillator provides four test frequencies: 40 Hz, 1 kHz, 10 kHz and 15 kHz. It can be routed directly to buses 1–16 or to the stereo Mix bus, with an adjustable output level.

Switch the oscillator OFF during normal console operation when it is not required.

The same section contains the master solo controls:

  • SOLO LEVEL - sets the monitor level of the solo bus.
  • SOLO IN FRONT - adjusts the solo-to-Mix balance.
  • SIP - selects Solo in Place.
  • PFL/AFL - selects the non-SIP solo point.

Stereo bus compressor​

The compressor is inserted in the stereo Mix path after the Mix insert point and before the Master Fader.

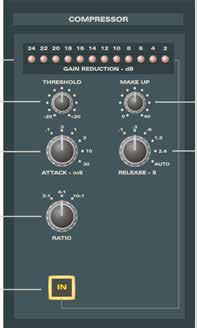

ASP4816 Classic stereo bus compressor

Controls are provided for:

  • THRESHOLD - approximately -20 dBu to +20 dBu.
  • ATTACK - six stepped settings from 0.1 ms to 30 ms.
  • RATIO - 2:1, 4:1 or 10:1.
  • MAKE UP - compensates for level lost through gain reduction; up to 40 dB is available.
  • RELEASE - five stepped settings from 0.1 s to 2.4 s plus AUTO.
  • IN - places the compressor in circuit.

The 12-segment GAIN REDUCTION meter shows the amount of compression being applied.
